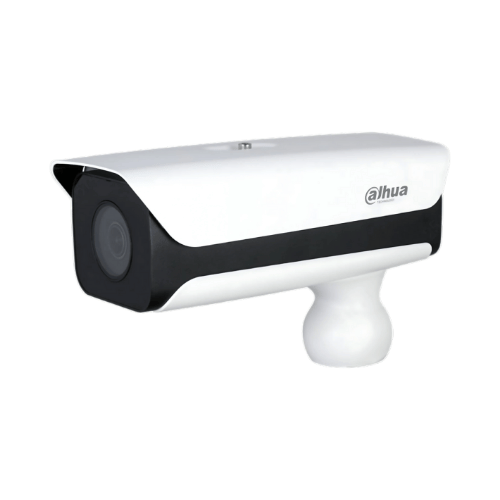

Camera IP 2MP Dahua DH-ITC215-PW6M-(IR)LZF Giải Pháp ANPR Hiện Đại
Camera IP 2MP Dahua DH-ITC215-PW6M-(IR)LZF là thiết bị ANPR chuyên dụng, tích hợp AI để nhận diện biển số xe chính xác. Với chuẩn IP67, ống kính đa tiêu cự và đèn LED trợ sáng, đây là lựa chọn lý tưởng cho quản lý giao thông và bãi đỗ xe.
Hình Ảnh 2MP Rõ Nét
Cảm biến CMOS 1/2.8 inch cung cấp độ phân giải 2MP (1920×1080)@30fps, mang lại hình ảnh sắc nét, hỗ trợ giám sát hiệu quả cả ngày lẫn đêm.
Nhận Diện Biển Số AI
Thuật toán AI đạt tỉ lệ phát hiện phương tiện 99% và nhận diện 95%, nhận biết biển số, kiểu xe, logo, màu xe, kể cả xe không biển, tối ưu hóa an ninh.
Đèn LED Trợ Sáng Hiệu Quả
Tích hợp 6 đèn LED IR với tầm chiếu sáng 12m, đảm bảo hình ảnh rõ ràng trong điều kiện thiếu sáng, hỗ trợ lắp đặt nhanh chóng và dễ dàng.
Thiết Kế IP67 Bền Bỉ
Chuẩn IP67 chống nước, bụi, chất liệu nhựa và kim loại, kích thước 296.5mm x 124.3mm x 107.7mm, đảm bảo hoạt động ổn định trong mọi thời tiết.
Nguồn Điện Và Kết Nối Đa Dạng
Hỗ trợ nguồn 12V DC, 24V AC, PoE, tiêu thụ điện năng thấp, tích hợp cổng tín hiệu, dữ liệu, kết nối với barrier, phù hợp cho nhiều hệ thống an ninh.
Đặt hàng ngay hôm nay để sở hữu Camera IP 2MP Dahua DH-ITC215-PW6M-(IR)LZF và đảm bảo an ninh giao thông tối ưu!
Thông số kỹ thuật
| Basic | |
| Illuminator Number | 6 IR illuminators, brightness adjustable |
| Image Sensor | 1/2.8″ CMOS |
| Image Resolution | 1920 × 1080 (OSD black strip excluded) |
| Video Resolution | Main stream: 1080P (1920 × 1080)/720P (1280 × 720) Sub stream: 720P (1280 × 720)/D1 (704 × 576, 704 × 480)/CIF (352 × 288, 352 × 240) |
| Video Frame Rate | PAL: Main stream (1920 × 1080@25fps, 1280 × 720@25fps), sub stream (1280 × 720@25fps, 704 × 576@25fps, 352 × 288@25fps) NTSC: Main stream (1920 × 1080@30fps, 1280 × 720@30fps), sub stream (1280 × 720@30fps, 704 × 408@30fps, 352 × 240@30fps) |
| Bit Rate | H.264B: 32Kbps~32768Kbps H.264M: 32Kbps~32768Kbps H.264H: 32Kbps~32768Kbps H.265: 32Kbps~32768Kbps MJPEG: 512Kbps~65536Kbps |
| Video Compression | H.264B/H.264M/H.264H/H.265/MJPEG |
| Picture Encoding Format | JPEG |
| Noise Reduction | 3DNR |
| White Balance | Full auto, auto color temperature range, customized color temperature |
| Electronic Shutter Speed | 1/50~1/10000, auto or manual |
| WDR | 96 db |
| Edge Enhancement | Yes |
| Exposure Mode | Full auto, customized auto, customized |
| Iris Control | Auto iris (W: 1.6~T: 3.3) |
| Performance | |
| Trigger Mode | Video detection; I/O coil; video detection and I/O coil |
| Shutter | Single shutter |
| Storage | 1 built-in TF card port. Supports Kingston 16G, 32G, 64G, and 128G; Dahua 16G, 32G, 64G, and 128G; SanDisk 16G, 32G, 64G, and 128G |
| Image Tampering Prevention | Yes. Video/picture can be checked through watermark and verification |
| Field of View | Horizontal: 108.1° (W)-30.3° (T); Vertical: 56.3° (W)-17.1° (T); Diagonal: 130.9° (W)-34.8° (T) |
| Illumination Distance | 12 m (39.37 ft) |
| Capture Range | 3 m-6 m (9.84 ft-19.69 ft) |
| Detected Lane Width | 3 m-4 m (9.84 ft-13.12 ft) |
| Min Ambient Illuminance | 0.002 Lux. Illuminator is designed with the camera for illumination |
| Max Speed that the Camera Detects | 30 km/h |
| Alarm Event | Alarm in the case of no storage card, not enough storage space, storage card error, network disconnection, IP conflict, and illegal access |
| Security | Authorized username and password, MAC address binding, HTTPS encryption, IEEE 802.1x, and network access control |
| OSD Overlay | Supports overlay of time, address (position of channel), lane (number/direction), plate (number and color), vehicle (speed, color, type) |
| Automatic Network Replenishment (ANR) | Yes. Platform/FTP |
| Auto Registration | Yes |
| Intelligence | |
| Vehicle Detection | Vehicle capture rate ≥99% |
| Vehicle Recognition | Supports recognizing vehicle type, vehicle logo, vehicle series, vehicle color, license plate, features of driver and front-seat passenger, and vehicle without plate. Vehicle recognition rate ≥95% |
| Video Metadata | Yes |
| Intelligent Track Frame | Intelligent frame display. Supports displaying vehicle plate and vehicle path |
| Interface | |
| Lens Mount | Φ14 |
| Analog Output | 1 |
| Network | 1 100/1000M Ethernet port (RJ-45) |
| RS-485 | 2 |
| RS-232 | 1 |
| Alarm Input | 3, optocoupler input (on-off input) |
| Alarm Output | 3 ports. 2-channel optocoupler output, 1-channel relay output, which can connect to devices such as barriers |
| Audio Input | 1-channel RCA port |
| General | |
| Power Supply | 12V DC, 24V AC, PoE+ |
| Power Consumption | <20W |
| Operating Temperature | -30℃ to +65℃ (-22℉ to +149℉) |
| Operating Humidity | 10%RH-90%RH (no condensation) |
| Casing | Metal and plastic |
| Protection Grade | IP67 |
| Dimensions | 486.7 mm × 124.3 mm × 185.5 mm (19.16″ × 4.89″ × 7.30″) (L × W × H) |
| Net Weight | 1.9 kg (4.19 lb) |
| Gross Weight | 3.3 kg (7.28 lb) |
| Installation | Installed with bracket |
| Lens | 3.2 mm -10.5 mm |
| Approval | |
| Certification | CE, FCC |
| RoHS | Yes |
