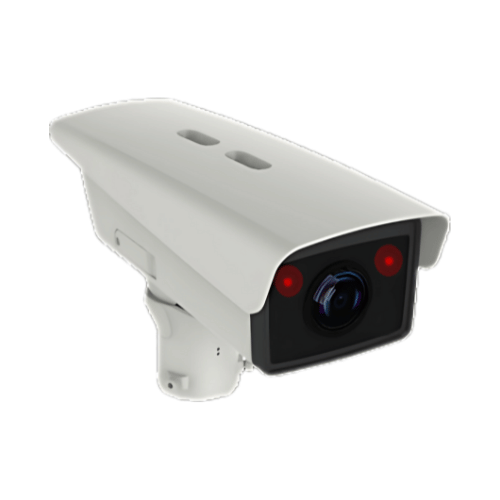

Camera IP 4MP Hikvision DS-TCG405-E Nhận Diện Biển Số Xe Chuyên Nghiệp
Camera IP 4MP Hikvision DS-TCG405-E là thiết bị giám sát AI hiện đại, chuyên nhận diện biển số xe cho lối ra vào kết hợp barrier. Với hình ảnh 4MP, tính năng thông minh và độ bền cao, đây là giải pháp tối ưu cho an ninh giao thông.
Hình Ảnh Sắc Nét 4MP
Cảm biến 1/3″ Progressive Scan CMOS với độ phân giải 2688×1520 mang lại hình ảnh rõ ràng. White light và IR LED hỗ trợ quan sát hiệu quả trong bóng tối hoặc điều kiện ánh sáng yếu.
Nhận Diện Biển Số Xe Chính Xác
Camera hỗ trợ multi-frame LPR và quick pass cho nhiều phương tiện, nhận diện loại xe, màu sắc và thương hiệu. Danh sách 30,000 whitelists đảm bảo quản lý lối ra vào chính xác, an toàn.
Kiểm Soát Barrier Thông Minh
Tích hợp relay output điều khiển đóng/mở barrier, kết hợp loop triggering hoặc radar triggering, camera giúp kiểm soát giao thông mượt mà, giảm thời gian chờ đợi.
Công Nghệ và Lưu Trữ Hiện Đại
Ống kính tiêu cự thay đổi 3.1-6mm với one-touch focus mang lại hình ảnh chi tiết. Khe cắm thẻ TF Card (lên đến 128GB) và offline control đảm bảo lưu trữ và vận hành liên tục.
Thiết Kế và Tích Hợp Tiện Lợi
Hỗ trợ PoE (802.3af) tiết kiệm chi phí lắp đặt, cùng tính năng manual capture và ANPR, camera dễ dàng tích hợp vào hệ thống quản lý giao thông, bãi đỗ xe.
Đặt hàng ngay hôm nay để sở hữu Camera IP 4MP Hikvision DS-TCG405-E và nâng cao hiệu quả an ninh giao thông!
Thông số kỹ thuật
| Camera | |
| Sensor Type | 1/3″ Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.022Lux@(F1.9, AGC ON) B/W: 0.011Lux@(F1.9, AGC ON) |
| Shutter | 1/30 s to 1/100,000 s |
| Day/Night Switch | Supported |
| IR Cut Filter | IR cut filter Blue glass module to reduce ghost phenomenon |
| Lens | |
| Lens Type | 3.1 to 6 mm |
| Aperture | 3.1 to 6 mm：F1.9 |
| Focal Length & FoV | 3.1 to 6 mm, horizontal FoV: 105.5° to 51.4°, vertical FoV: 55.9° to 28.9°, diagonal FoV: 126.9° to 59.2° |
| Focus | Auto,Vari-focal lens, motor-driven lens |
| Supplement Light | |
| Supplement Light Type | IR Light, Warm White Light |
| Supplement Light Range | Video: 3.1 mm to 6 mm: 10 m Vehicle License Plate: 3.1 mm to 6 mm: 5 m |
| IR Wavelength | Warm White Light 3000 K, IR Light 850 nm |
| Image | |
| WDR | 140 dB |
| Main Stream | 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Image Settings | Saturation: 0 to 100 Brightness: 0 to 100 Contrast: 0 to 100 Gain: 0 to 100 3D DNR: Off, Normal, and Expert modes are selectable. White balance: White Balance 1 and White Balance 2 are selectable. |
| Image Parameters Switch | Yes |
| WDR Switch | On, Time, Brightness |
| Frame Rate | 25 fps (P)/30 fps (N) |
| Video | |
| ROI | 8 regions respectively for main stream and sub-stream, 6 levels for each region. |
| Video Compression | Main stream: H.265/H.264/MJPEG, Sub-stream: H.265/H.264/MJPEG, |
| H.264 Type | Low profile Medium profile High Profile |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Bit Rate Type | Constant, Variable |
| Scalable Video Coding (SVC) | H.265 and H.264 encoding |
| Capture Mode | |
| Trigger Type | Video Detection, I/O Coil, Radar Mixed Traffic |
| Picture Type | Scene Picture, Scene Picture + Close-up Picture |
| Scene Mode | Entrance & Exit Toll Gate, Underground Parking Entrance & Exit |
| Capture Type | Strobe Light Mode |
| Capture Parameters | |
| Image Format | JPEG |
| Capture Resolution | 2688 × 1520 |
| License Plate Recognition | Forward, Backward, Bidirection |
| LED Control | Supports automatic light control/time control of LEDs |
| Smart Recognition | ANPR, Motor Vehicle Feature, Vehicle Color Recognition, Enable Vehicle Manufacturer Recognition |
| Capture Picture Overlay | Location, Capture Time, Plate Number, Capture No., Vehicle Color Vehicle Type |
| Entrance and Exit | |
| Barrier Gate Control Mode | By Camera/Platform/Mixed |
| Keep Boom Pole Open for Following Vehicle | Enable/Disable |
| Lock Barrier Gate for Large-Sized Vehicle | Yes |
| Relay Output | 2-ch relay output, supporting opening and closing of barrier gates |
| Barrier Gate Status | None, Barrier Gate Close In Place, Barrier Gate Open In Place, Remote Control Open In Place |
| Allowlist and Blocklist | Up to 100,000 allowlist and blocklist totally Note: Only when the TF card is available, can the function take effect. |
| Network | |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Protocol | TCP/IP, ICMP, HTTP, HTTPS, FTP Upload Picture, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SNMP, IGMP, QoS, IPv6, UDP, SSL/TLS, WebSocket |
| API | Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP, Otap, Guarding Vision Platform |
| Client | Hik-Central,SDKdemo,PMS |
| Web Browser | Plug-in required live view: IE10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+ |
| Security | Password protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2 |
| Interface | |
| Audio | 1 input (line in), 1 output (line out) |
| Communication Mode | 1 RJ45 10M/100M Ethernet port |
| Alarm Input | 3-ch triggered inputs |
| Alarm Output | 1-ch alarm output |
| Wiegand | Not support |
| RS-232 | 1-ch RS-232 serial port |
| RS-485 | 1-ch RS-485 serial port |
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Memory Card Slot | 1 TF card slot, up to 1 TB |
| Smart Function | |
| LPR Accuracy | Capture rate > 98% Vehicle moving direction recognition accuracy > 98.5% LPR accuracy > 98% Mistaken capture rate < 2% European: LPR accuracy > 98% Country/Region recognition accuracy > 95% |
| Vehicle Type Recognition | Car/Van/Bus/Truck/Light Truck/SUV_MPV/Pickup/Pedestrian/Motorcycle/Tricycle |
| Vehicle Color | Red, Yellow (including orange, golden), Green, Cyan, Blue, Purple, Pink, Brown, White, Gray (including silver), Black |
| Vehicle Brand | 84 manufacturers: Hyundai, Toyota, KIA, Honda, Volkswagen, Benz, Nissan, Ford, Isuzu, BMW, Chevrolet, Mitsubishi, Renault, Opel, Suzuki, Skoda, Daewoo, Audi, Mazda, GAC HINO, Peugeot, SsangYong, Citroen, Fiat, Scania, MAN, Volvo, Lexus, Seat, Land Rover, Daihatsu, Dongwo, Subaru, Iveco, MINI, JEEP, Porsche, Chery, Dodge, Chrysler, Acura, Alfa Romeo, Great Wall, Infiniti, Smart, Saic Maxus, JAC, Jaguar, GMC, Lincoln, JMC, SAAB, FAW, Yutong, Guangzhou Yunbao, Joylong, Geely, Cadillac, JBC, An‘kai, Haima, Foton, King Long, Dongfeng, Geely-Emgrand, Perodua, UD, BYD, Renault Samsung, Proton, HICOM, Malaysia_Unknown 1, Hyundai-Rohens, SsangYong-Old Version, Equus-Old Version, CNHTC, Rolls-Royce, Beiben Truck, Haval, Hino, Kia-Borrego, Chang‘an, Alfa, FORO |
| ANPR Supported Country/Region | Middle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan |
| Approval | |
| EMC | CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EEN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014); KC (KN 32: 2015, KN 35: 2015) |
| Security | CB (IEC 62368-1: 2014 + A11); CE-LVD (EN 62368-1: 2014/A11: 2017); BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005); |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IK10 (IEC 62262: 2002), IP67 (IEC 60529-2013) |
| General | |
| Working Temperature & Humidity | -25°C to 70°C (-13°F to 158°F) 90% or less (non-condensing) |
| Power Supply | 12 to 24 VDC/PoE (802.3at, 44 V to 57 V), 300 mA to 230 mA |
| Working Consumption | 10 W Max. |
| Dimensions | 415 mm × 145 mm × 145 mm (16.34 × 5.71 × 5.71 inch) |
| Weight | 3.25 kg (7.17 lb.) |
