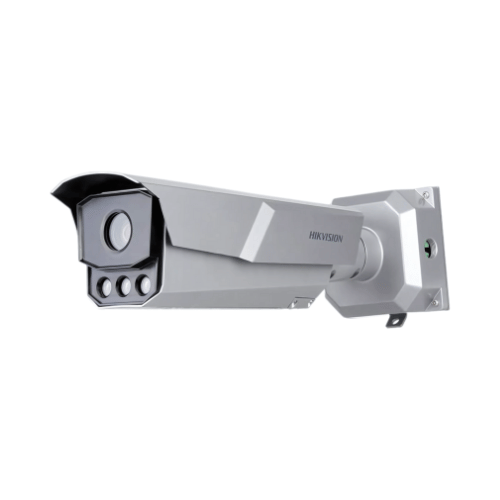

Camera IP 4MP Hikvision iDS-ANPR403-BI/0832 Giám Sát Giao Thông Thông Minh
Camera IP 4MP Hikvision iDS-ANPR403-BI/0832 là thiết bị giám sát AI chuyên dụng, nhận diện biển số xe tốc độ cao với độ chính xác cao. Với độ phân giải 4MP, công nghệ AI và thiết kế bền bỉ, đây là giải pháp tối ưu cho bãi đỗ xe, trạm thu phí và an ninh đô thị.
Hình Ảnh 4MP Siêu Nét
Cảm biến 1/1.8 progressive scan CMOS với độ phân giải 2688×1520 mang lại hình ảnh sắc nét. Độ nhạy sáng vượt trội (Color: 0.001 Lux @ F1.2, AGC ON; 0.0005 Lux với IR) đảm bảo quan sát rõ ràng trong mọi điều kiện.
Nhận Diện Biển Số Xe Chính Xác
Với tốc độ chụp ảnh từ 5 đến 120km/h, camera nhận diện biển số xe máy và ô tô hiệu quả. Tính năng AI hỗ trợ nhận diện thương hiệu xe, tối ưu hóa quản lý giao thông và an ninh.
Công Nghệ Xử Lý Hình Ảnh Đỉnh Cao
Tích hợp chuẩn nén H.265/H.264, công nghệ 140 dB WDR, BLC và 3D DNR, camera mang lại hình ảnh rõ nét, giảm nhiễu và chống ngược sáng trong môi trường ánh sáng phức tạp.
Giám Sát và Lưu Trữ Hiệu Quả
Tầm xa hồng ngoại 60m và khe cắm thẻ nhớ 512GB đảm bảo giám sát ban đêm và lưu trữ dữ liệu linh hoạt. Hỗ trợ Alarm I/O, 1 RS-485 và 1 Wiegand, camera dễ dàng tích hợp vào hệ thống an ninh.
Thiết Kế Bền Bỉ, Hoạt Động Ổn Định
Đạt chuẩn IP67 chống nước, bụi và IK10 chống va đập, camera hoạt động ổn định trong mọi môi trường. Ống kính 8mm-32mm (F1.7, auto focus) mang lại khả năng quan sát chi tiết.
Đặt hàng ngay hôm nay để sở hữu Camera IP 4MP Hikvision iDS-ANPR403-BI/0832 và nâng cao hiệu quả giám sát giao thông!
Thông số kỹ thuật
| Camera | |
| Image Sensor | 1/1.8″ progressive scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.001 Lux |
| Shutter Time | 1/25 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Lens | |
| Focal Length & FOV | 8 mm to 32 mm: Horizontal: 41.9° to 15.1°, Vertical: 22.9° to 8.64°, Diagonal: 48.8° to 17.3° |
| Focus | Auto |
| Iris Type | DC-IRIS |
| Aperture | 8 mm to 32 mm: F1.7 |
| Illuminator | |
| Built-in Supplement Light Type | IR light |
| Built-in Supplement Light Range | Up to 60 m |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 760, 704 × 576, 352 × 288) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 760, 704 × 576, 352 × 288) |
| Sub-Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 760, 704 × 576, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 760, 704 × 576, 352 × 288) |
| Third Stream | 50 Hz: 25 fps (1280 × 760, 704 × 576, 352 × 288) 60 Hz: 30 fps (1280 × 760, 704 × 576, 352 × 288) |
| Video Compression | H.264 and H.265 encoding Main stream: H.265/H.264/MJPEG Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline profile/Main profile/High profile |
| H.265 Type | Main profile |
| Audio | |
| Audio Compression | G.711/G.722.1 |
| Audio Bit Rate | 8 Kbps (G.711)/16 Kbps (G.722.1) |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP, SNMP, IGMP, QoS, IPv4/IPv6, UDP, SSL/TLS, ISUP, ARP, 802.1X |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP |
| User/Host | Up to 32 users 3 user levels: administrator, operator, user |
| Security | Password protection, Complicated password, HTTPS encryption, 802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5), Watermark, IP address filter, Basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, Control timeout settings, Security audit log, TLS 1.1, Host authentication (MAC address) |
| Network Storage | Micro SD/TF card (512 GB), local storage and CVR, NVR, ANPR |
| Web Browser | Chrome V61+, IE9 to IE11, Firefox V41+, Edge |
| Image | |
| Image Settings | Rotation mode, saturation, brightness, contrast, sharpness, AGC, adjustable white balance via client software or web browser |
| Day/Night Switch | Auto/Scheduled/Triggered by alarm in |
| Wide Dynamic Range (WDR) | 140 dB |
| Image Enhancement | BLC, 3D DNR |
| Picture Overlay | Logo picture can be overlaid on video with 128 × 128 in 24-bit bmp format |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M/1000M Ethernet interface |
| On-Board Storage | Built-in memory card slot, supporting microSD/SDHC/SDXC card, up to 512GB |
| Audio | Supported |
| Alarm | 1 input interface, 1 output interface, 2 relays |
| RS-485 | 1 RS-485 interface |
| Wiegand | 1 Wiegand (Card ID 26bit, SHA-1 26bit, Hik 34bit) |
| Event | |
| Basic Event | HDD Error, Network Disconnected, IP Address Conflicted, Vehicle Detector Exception, Traffic Light Detector Exception |
| Road Traffic and Vehicle Detection | |
| Coverage | Up to 3 lane(s) |
| Smart Function | License plate recognition |
| LPR Countries/Regions | Middle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain, Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria, Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka, America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala, Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina, Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan |
| Accuracy (under recommended installation and lighting conditions) | Capture rate > 99%, Vehicle moving direction recognition accuracy > 98.5%, LPR accuracy > 98%, Mistaken capture rate < 2% |
| Motorcycle LPR | Supported |
| Vehicle Manufacturer | 84 manufacturers: Hyundai, Toyota, KIA, Honda, Volkswagen, Benz, Nissan, Ford, Isuzu, BMW, Chevrolet, Mitsubishi, Renault, Opel, Suzuki, Skoda, Daewoo, Audi, Mazda, GAC HINO, Peugeot, SsangYong, Citroen, Fiat, Scania, MAN, Volvo, Lexus, Seat, Land Rover, Daihatsu, Dongwo, Subaru, Iveco, MINI, JEEP, Porsche, Chery, Dodge, Chrysler, Acura, Alfa Romeo, Great Wall, Infiniti, Smart, Saic Maxus, JAC, Jaguar, GMC, Lincoln, JMC, SAAB, FAW, Yutong, Guangzhou Yunbao, Joylong, Geely, Cadillac, JBC, An‘kai, Haima, Foton, King Long, Dongfeng, Geely-Emgrand, Perodua, UD, BYD, Renault Samsung, Proton, HICOM, Malaysia_Unknown 1, Hyundai-Rohens, SsangYong-Old Version, Equus-Old Version, CNHTC, Rolls-Royce, Beiben Truck, Haval, Hino, Kia- Borrego, Chang‘an, Alfa, FORO |
| Capture Speed Range | 5 to 120 km/h |
| General | |
| Operating System | Linux |
| Power | DC 12 V to 24 V, 1.25 A, max. 15 W, two-core terminal block, PoE: 802.3at, Type 2, Class 4, max. 15 W |
| Material | Aluminum alloy |
| Dimension | 428.5 mm × 120 mm × 132.8 mm (16.9″ × 4.72″ × 5.2″) (L × W × H) |
| Package Dimension | 452 mm × 398 mm × 198 mm (17.8″ × 15.67″ × 7.8″) (L × W × H) |
| Weight | Approx. 3 kg (6.61 lb.) |
| With Package Weight | Approx. 5.19 kg (11.44 lb.) |
| Operating Condition | -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing) |
| General Function | One-key reset, three streams, heartbeat, password protection, watermark |
| Language | 8 languages: English, Russian, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Spanish |
| Storage Condition | -30℃ to 60℃ (-22℉ to 140℉). Humidity 95% or less (non-condensing) |
| Protection | IK10, IP67 |
