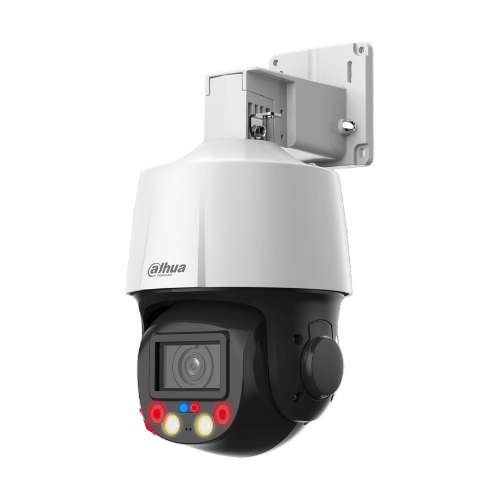

Camera Ip Speed Dome 4.0Mp Dahua DH-SD3E405DB-GNY-A-PV1

Camera

Image Sensor

1/2.8″ CMOS

Pixel

4 MP

Max. Resolution

2560 (H) × 1440 (V)

ROM

128 MB

RAM

512 MB

Electronic Shutter Speed

1/1 s–1/30,000 s

Scanning System

Progressive

Min. Illumination

Color: 0.005 lux@F1.6
B/W: 0.0005 lux@F1.6
0 lux (IR light on)

Illumination Distance

50 m (164.04 ft) (IR)
30 m (98.43 ft) (Warm light)

Illuminator On/Off Control

Zoom Prio; Manual; Auto; Off

Illuminator Number

2 (IR)
2 (Warm light)
1 (Red light)
1 (Blue light)

Lens

Focal Length

2.7 mm–13.5 mm

Max. Aperture

F1.6–F3.0

Field of View

H: 94.9°–30.1°;
V: 51°–17.1°;
D: 112.3°–34.6°

Optical Zoom

5×

Focus Control

Auto; semi-auto; manual

Close Focus Distance

1.5 m (4.92 ft)

Iris Control

Fixed

DORI Distance

Detect

Observe

Recognize

Identify

270 m

(885.83 ft)

106.6 m

(349.74 ft)

54 m

(177.17 ft)

27 m

(88.58 ft)

PTZ

Pan/Tilt Range

Pan: 0° to 355°
Tilt: –15° to +90°

Manual Control Speed

Pan: 0.1°/s–36°/s
Tilt: 0.1°/s–25.8°/s

Preset Speed

Pan: 35.7°/s; Tilt: 27.1°/s

Preset

300

Power-off Memory

Yes

Idle Motion

Preset

Intelligence

IVS (Perimeter Protection)

Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking

Face Detection

Supports face detection, snapshot, and face enhancement;
Supports face cutout: Face, one-inch photo;
Capturing strategies include real-time capturing and quality first

Auto Tracking Lite

Yes

SMD

Yes

Active Deterrence

Light Warning

Red and blue light warning
Flash duration: 5 s–30 s
Flash frequency: high, medium, low

Sound Warning

Offers 11 types of sound alarms, and supports importing up to 10 custom sound alarms. The sound alarm can be set to play 1 to 10 times

Video

Video Compression

H.264H;H.264B;Smart H.265+; H.264;H.265;MJPEG(Sub Stream);Smart H.264+

Streaming Capability

3 streams

Resolution

4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p(1280 × 720); D1 (704 × 576); VGA (640 × 480); CIF (352 × 288)

Video Frame Rate

Main stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps)
Sub stream 1: D1/CIF/VGA@ (1–25/30 fps)
Sub stream 2: 720p @(1–25/30 fps)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 96 kbps–14848 kbps
H.265: 38 kbps–8960 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

WDR

120 dB

HLC

Yes

White Balance

Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Gain Control

Auto; manual

Noise Reduction

2D NR; 3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes

Image Stabilization

Electronic (EIS)

Defog

Electronic

Digital Zoom

16×

Image Rotation

180°

S/N Ratio

≥55 dB

Audio

Audio Compression

G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; PCM

Network

Network Port

RJ-45 (10/100 Base-T)

Network Protocol

FTP;RTMP;IPv6;Bonjour;IPv4;DNS;RTCP;PPPoE;NTP;RTP;802.1x;HTTPS;SNMP;TCP/IP;DDNS;UPnP;NFS;ICMP;UDP;IGMP;SMB;HTTP;SSL;DHCP;SMTP;Qos;RTSP;ARP

Interoperability

CGI;SDK;ONVIF (Profile S&G&T);P2P

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth: 64 M)

Storage

FTP/SFTP; Micro SD card (512 GB); NAS

Browser

IE 9 and later versions
Chrome 41 and later versions
Firefox 50 and later versions
Safari 10 and later versions

Management Software

DMSS;DSS Pro

Mobile Client

iOS;Android

Certification

Certifications

CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014

Port

Audio Input

1 channel (LINE IN, bare wire,built-in mic (mutually exclusive))

Audio Output

1 channel (LINE OUT,bare wire;built-in speaker (mutually exclusive))

Alarm Linkage

Capture; recording; send email; preset; alarm digital input; audio; warning light

Alarm Event

Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Alarm I/O

1/1

Audio I/O

1/1

Power

Power Supply

12 VDC, 2 A ± 10%
PoE+ (802.3at)

Power Consumption

Basic: 4.5 W
Max.: 15 W (illuminator + PTZ + speaker + heating glass)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤95%

Protection

IP66, TVS 6000 V lightning proof; surge protection; voltage transient protection

Structure

Product Dimensions

142.6 mm × 140 mm × 236.1 mm (5.61″ × 5.51″ ×

9.29″)

Net Weight

1.5 kg (3.31 lb)

Gross Weight

2.1 kg (4.63 lb)
