| System |
| Main Processor <!–{v.name}–> | Industrial-grade processor |
| Operating System <!–{v.name}–> | Embedded Linux |
| Operating Interface <!–{v.name}–> | Web; Local GUI |
| QuickPick 2.0 |
| QuickPick 2.0 AI by Recorder (Number of Channels) <!–{v.name}–> | 1 channel |
| Perimeter Protection |
| Perimeter Performance AI by Recorder (Number of Channels) <!–{v.name}–> | Advanced Mode: 2 channels, 10 IVS rules for each channel General Mode: 4 channels, 10 IVS rules for each channel |
| Face Detection |
| Face Attributes <!–{v.name}–> | 6 attributes |
| Face Detection Performance of AI by Recorder (Number of Channels) <!–{v.name}–> | 1 channel (up to 8 face images/s each channel) |
| Face Recognition |
| Face Database Capacity <!–{v.name}–> | Up to 10 face databases with 10,000 images. |
| Face Recognition Performance of AI by Recorder (Number of Channels) <!–{v.name}–> | 1 channel |
| SMD Plus |
| SMD Plus by Recorder <!–{v.name}–> | 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD Plus by Camera <!–{v.name}–> | 6 channels |
| AI Video Quality Analytics |
| AI Video Quality Analytics by Recorder <!–{v.name}–> | 4 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white |
| Scene Changing |
| Scene Changing by Recorder <!–{v.name}–> | 1 channel |
| Irregular Black Block Masking |
| Irregular Black Block Masking by Recorder <!–{v.name}–> | 1 channel |
| Audio and Video |
| Analog Camera Input <!–{v.name}–> | 4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect |
| Camera Input <!–{v.name}–> | 1. CVI: 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30fps. 2. TVI: 5 MP(2560 x 1944)@20 fps; 5 MP(2960 x 1665)@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. |
| IP Camera Input <!–{v.name}–> | Up to 6 channels of IPC access 2 IP channels by default +4 channels (analog channels are converted to IP channels) incoming bandwidth: 32 Mbps, recording bandwidth: 32 Mbps and outgoing bandwidth: 32 Mbps *After IP extension is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, SMD, Perimeter Protection and QuickPick 2.0 cannot be used. |
| Encoding Capacity <!–{v.name}–> | Encode Enhancement disabled： Main stream: Channels 1-2 5M-N@(1 fps–25 fps), others 5M-N@(1 fps–12 fps); Channels 1-2 4M-N/1080p@(1 fps–30 fps), others 4M-N/1080p@(1 fps–15 fps); 1080N/720p/960H/D1/CIF@(1 fps–30 fps); Sub stream: D1/CIF@(1 fps–15 fps); Encode Enhancement enabled： Main stream: 4-ch 5M-N@(1 fps-25 fps);(4 channels can be transformed to 5MP@6 fps) 4-ch 4M-N/1080p@(1 fps–25 fps); 1080N/720p/960H/D1/CIF@(1 fps–30 fps); Sub stream: D1/CIF@(1 fps–15 fps); *When Encode Enhancement is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection and QuickPick 2.0 cannot be used. |
| Dual-stream <!–{v.name}–> | Yes |
| Video Bit Rate <!–{v.name}–> | 32 kbps–6144 kbps |
| Audio Sampling <!–{v.name}–> | 8 kHz, 16 bit |
| Audio Bit Rate <!–{v.name}–> | 64 kbps |
| Video Output <!–{v.name}–> | 1 HDMI, 1 VGA HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-screen Display <!–{v.name}–> | When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/6 |
| Third-party Camera Access <!–{v.name}–> | Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF |
| Compression Standard |
| Video Compression <!–{v.name}–> | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
| Audio Compression <!–{v.name}–> | G.711a; G.711u; PCM |
| Network |
| Network Protocol <!–{v.name}–> | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
| Mobile Phone Access <!–{v.name}–> | iOS; Android |
| Interoperability <!–{v.name}–> | ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK |
| Browser <!–{v.name}–> | Chrome; IE; Safari; Edge; Firefox |
| Recording Playback |
| Record Mode <!–{v.name}–> | General; alarm; motion detection; intelligent; POS |
| Recording Playback <!–{v.name}–> | 1/4 |
| Backup Method <!–{v.name}–> | USB device and network |
| Playback Mode <!–{v.name}–> | Instant playback; general playback; event playback; tag playback; smart playback |
| Alarm |
| General Alarm <!–{v.name}–> | Motion detection; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm |
| Anomaly Alarm <!–{v.name}–> | Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline |
| Intelligent Alarm <!–{v.name}–> | Face detection; face recognition; perimeter protection; SMD Plus |
| Alarm Linkage <!–{v.name}–> | Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email |
| Ports |
| Audio Input <!–{v.name}–> | 1-channel RCA 4-channel BNC (Coaxial Audio) |
| Audio Output <!–{v.name}–> | 1-channel RCA |
| Two-way Talk <!–{v.name}–> | Yes (share the same audio input with the first channel) |
| Disk Interface <!–{v.name}–> | 1 SATA port, up to 16 TB. This limit varies depending on the environment temperature. |
| RS-485 <!–{v.name}–> | 1 |
| USB <!–{v.name}–> | 2 (1 front USB 2.0 port, 1 rear USB 2.0 port) |
| HDMI <!–{v.name}–> | 1 |
| VGA <!–{v.name}–> | 1 |
| Network Port <!–{v.name}–> | 1 (10/100 Mbps Ethernet port, RJ-45) |
| General |
| Power Supply <!–{v.name}–> | 12 VDC, 1.5A |
| Power Consumption <!–{v.name}–> | <5 W(without HDD) |
| Net Weight <!–{v.name}–> | 0.84 kg (1.85 lb) |
| Gross Weight <!–{v.name}–> | 1.37 kg (3.02 lb) |
| Product Dimensions <!–{v.name}–> | 260.0 mm × 237.8 mm × 47.6 mm (10.24″ × 9.36″ × 1.87″) (W × D × H) |
| Packaging Dimensions <!–{v.name}–> | 333.0 mm × 89.0 mm × 315.0 mm (13.11″ × 3.50″ × 12.40″) (W × D × H) |
| Operating Temperature <!–{v.name}–> | –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Temperature <!–{v.name}–> | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity <!–{v.name}–> | 10%–90% (RH), non-condensing |
| Installation <!–{v.name}–> | Desktop |
| Certifications <!–{v.name}–> | CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014 |

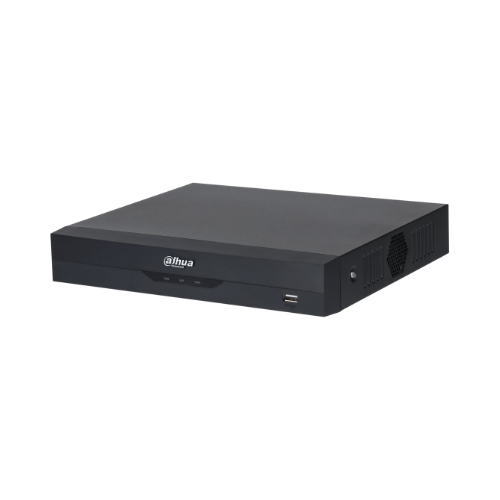

Đánh giá Đầu ghi cvi 4 kênh dahua DH-XVR5104HS-I3
