| System |
| Main Processor <!–{v.name}–> | Industrial-grade processor |
| Operating System <!–{v.name}–> | Embedded Linux |
| Operating Interface <!–{v.name}–> | Web, Local GUI |
| AI |
| AI by Recorder <!–{v.name}–> | Face detection, face recognition, perimeter protection, and SMD Plus; |
| AI by Camera <!–{v.name}–> | Face detection; face recognition; perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map |
| Perimeter Protection |
| Perimeter Performance AI by Recorder (Number of Channels) <!–{v.name}–> | 2 channels, 10 IVS rules for each channel |
| Perimeter Performance of AI by Camera (Number of Channels) <!–{v.name}–> | All channels (8 targets/s) |
| Face Detection |
| Face Attributes <!–{v.name}–> | Gender; age group; glasses; expressions; face mask; beard |
| Face Detection Performance of AI by Recorder (Number of Channels) <!–{v.name}–> | 1 channel (up to 12 face images/s each channel) |
| Face Detection Performance of AI by Camera (Number of Channels) <!–{v.name}–> | All channels (8 targets/s) |
| Face Recognition |
| Face Database Capacity <!–{v.name}–> | Up to 10 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image. |
| Face Recognition Performance of AI by Recorder (Number of Channels) <!–{v.name}–> | 8-channel FD (by camera) + FR (by recorder),image stream: 12 face images/s 1-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s |
| Face Recognition Performance of AI by Camera (Number of Channels) <!–{v.name}–> | All channels (8 targets/s) |
| SMD Plus |
| SMD Plus by Recorder <!–{v.name}–> | 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD Plus by Camera <!–{v.name}–> | All channels (16 targets/s) |
| Audio and Video |
| Access Channel <!–{v.name}–> | 16 channels |
| Network Bandwidth <!–{v.name}–> | AI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing |
| Resolution <!–{v.name}–> | 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF |
| Decoding Capability <!–{v.name}–> | AI disabled: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 4-channel 6 MP@30 fps; 6-channel 5 MP@30 fps; 8-channel 4 MP@30 fps; 16-channel 1080p@30 fps AI enabled: 1-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 3-channel 8 MP@30 fps; 3-channel 6 MP@30 fps; 4-channel 5 MP@30 fps; 6-channel 4 MP@30 fps; 12-channel 1080p@30 fps; 16-channel 720p@30 fps |
| Video Output <!–{v.name}–> | 1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable. |
| Multi-screen Display <!–{v.name}–> | 1st Screen: 1/4/8/9/16 2nd Screen: 1/4/8/9/16 |
| Third-party Camera Access <!–{v.name}–> | Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon |
| Compression Standard |
| Video Compression <!–{v.name}–> | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Audio Compression <!–{v.name}–> | G.711a; G.711u; PCM; G726 |
| Network |
| Network Protocol <!–{v.name}–> | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register |
| Mobile Phone Access <!–{v.name}–> | iOS; Android |
| Interoperability <!–{v.name}–> | ONVIF 22.06(Profile T; Profile S; Profile G); CGI; SDK |
| Browser <!–{v.name}–> | Chrome; IE9 and later; Firefox |
| Recording Playback |
| Multi-channel Playback <!–{v.name}–> | Up to 16 channels |
| Record Mode <!–{v.name}–> | General, motion detection; intelligent; alarm |
| Backup Method <!–{v.name}–> | USB device and network |
| Playback Mode <!–{v.name}–> | Instant playback, general playback, event playback, tag playback, smart playback |
| Storage |
| Disk Group <!–{v.name}–> | Yes |
| Alarm |
| General Alarm <!–{v.name}–> | Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm |
| Anomaly Alarm <!–{v.name}–> | Camera disconnection; storage error; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exception |
| Intelligent Alarm <!–{v.name}–> | Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map |
| Alarm Linkage <!–{v.name}–> | Record; snapshot; IPC external alarm output; audio; buzzer; log; preset; email |
| Port |
| Audio Input <!–{v.name}–> | 1-channel RCA |
| Audio Output <!–{v.name}–> | 1-channel RCA |
| Alarm Input <!–{v.name}–> | 4 channels |
| Alarm Output <!–{v.name}–> | 2 channels |
| Disk Interface <!–{v.name}–> | 2 SATA ports, up to 16 TB.The maximum HDD capacity varies with environment temperature. |
| USB <!–{v.name}–> | 2 (1 front USB 2.0 port, 1 rear USB 2.0 port) |
| HDMI <!–{v.name}–> | 1 |
| VGA <!–{v.name}–> | 1 |
| Network Port <!–{v.name}–> | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| General |
| Power Supply <!–{v.name}–> | 12 VDC, 4 A |
| Power Consumption <!–{v.name}–> | <10 W(without HDD) |
| Net Weight <!–{v.name}–> | 1.51 kg (3.33 lb) |
| Gross Weight <!–{v.name}–> | 2.76 kg (6.08 lb) |
| Product Dimensions <!–{v.name}–> | 375 mm × 284.3 mm × 53 mm (14.76″ × 11.19″ × 2.09″) (W × L × H) |
| Packaging Dimensions <!–{v.name}–> | 433 mm × 141 mm × 366 mm (17.05″ × 5.55″ × 14.41″) (W × L × H) |
| Operating Temperature <!–{v.name}–> | –10 °C to +55 °C (14 °F to +131 °F) |
| Storage Temperature <!–{v.name}–> | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity <!–{v.name}–> | 10%–93% (RH), non-condensing |
| Installation <!–{v.name}–> | Rack or desktop |
| Certifications <!–{v.name}–> | FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014 |

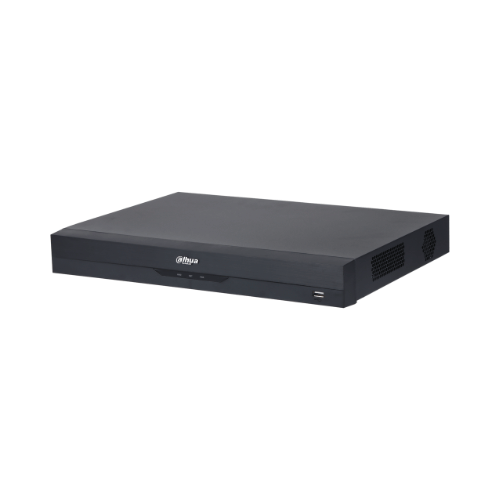

Đánh giá Đầu ghi ip 16 kênh dahua DHI-NVR4216-EI
