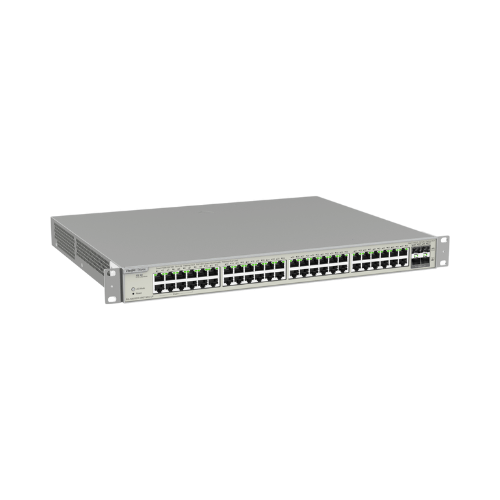

Switch PoE Ruijie RG-NBS5200-48GT4XS-UP: Cỗ Máy Năng Lượng 740W Với Công Nghệ PoE++ Đột Phá
Khi hệ thống mạng của bạn yêu cầu không chỉ số lượng cổng lớn mà còn cần công suất cực cao để vận hành các thiết bị chuyên dụng, Switch PoE Ruijie RG-NBS5200-48GT4XS-UP chính là giải pháp tối ưu. Với tổng công suất 740W và 8 cổng PoE++ đầu tiên, đây thực sự là “nhà máy điện” thu nhỏ cho mọi hệ thống mạng quy mô lớn.
Công Suất 740W – Gấp Đôi Sức Mạnh Thông Thường
Với tổng công suất PoE lên đến 740W, RG-NBS5200-48GT4XS-UP mang lại sức mạnh gấp đôi so với các switch 48 cổng thông thường. Công suất khủng này cho phép bạn triển khai đồng thời hàng chục thiết bị công suất cao mà không cần lo lắng về tình trạng quá tải. Hệ thống quản lý năng lượng thông minh tự động phân bổ công suất theo nhu cầu thực tế của từng thiết bị.
8 Cổng PoE++ – Cấp Nguồn Cho Thiết Bị Công Suất Cực Cao
Điểm đột phá của switch này nằm ở 8 cổng PoE++ đầu tiên (port 1-8). Trong khi các cổng PoE+ thông thường chỉ cung cấp tối đa 30W, các cổng PoE++ có khả năng cung cấp nguồn điện cực lớn cho các thiết bị “tham lam” năng lượng nhất như access point Wi-Fi 6/7 enterprise cao cấp, camera PTZ công nghiệp, màn hình tương tác thông minh, và các thiết bị IoT công suất lớn.
40 Cổng PoE+ – Đáp Ứng Mọi Nhu Cầu Cơ Bản
Bên cạnh 8 cổng PoE++, switch còn sở hữu 40 cổng PoE+ (port 9-48) với khả năng cung cấp 30W mỗi cổng. Sự kết hợp này tạo nên một cấu trúc phân tầng thông minh, cho phép bạn tối ưu hóa việc phân bổ nguồn điện cho các nhóm thiết bị khác nhau, từ thiết bị cơ bản đến thiết bị chuyên dụng cao cấp.
Tốc Độ Chuyển Mạch 176Gbps – Xử Lý Mượt Mà Ở Quy Mô Lớn
Để đảm bảo 52 cổng (48 PoE + 4 SFP+) hoạt động đồng thời, switch được trang bị tốc độ chuyển mạch 176Gbps. Hiệu năng ấn tượng này đảm bảo hệ thống luôn vận hành trơn tru, ngay cả khi tất cả các cổng đều hoạt động ở công suất tối đa. Dữ liệu từ hàng chục camera độ nét cao và lưu lượng người dùng được xử lý tức thời.
4 Cổng SFP+ 10Gbps – Đường Truyền Tốc Độ Siêu Cao
Sở hữu 4 cổng SFP+ 10Gbps, switch tạo ra một “đường cao tốc” cho toàn bộ lưu lượng từ 48 cổng PoE về trung tâm dữ liệu. Với tốc độ gấp 10 lần kết nối Gigabit thông thường, các cổng này đảm bảo không có hiện tượng nghẽn cổ chai, ngay cả trong điều kiện tải nặng nhất.
Thông số kỹ thuật
| Product Information | |
| Model | RG-NBS5200-48GT4XS-UP |
| Product Category | Layer 3 |
| Warranty | 5 years |
| Port Specifications | |
| Total number of RJ45 ports | 48 |
| Total number of optical ports | 4 |
| Number of 10GE SFP+ ports | 4 |
| Number of 10/100/1000BASE-T ports | 48 |
| Reset button | 1 |
| Power Supply and Consumption | |
| PoE Out standard | Ports 1–8: PoE/PoE+/PoE++ (IEEE 802.3af/at/pt) Ports 9–48: PoE/PoE+ (IEEE 802.3af/at) |
| Number of PoE Out ports | 48 |
| Number of PoE/PoE+ Out ports | 48 |
| Number of PoE/PoE+/PoE++ Out ports | 8 |
| PoE budget | 740 W |
| Power input | 220 V AC power supply: ● Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 10 A |
| Maximum power consumption | 75.6 W (with no PoE load) 815.6 W (with full PoE load) |
| Power supply | Fixed power supply |
| System Specifications | |
| RAM | 512 MB |
| Flash memory | 256 MB |
| Forwarding rate | 132 Mpps |
| Switching capacity | 176 Gbps(bit/s) |
| Dimensions and Weight | |
| Casing | Metal |
| Product dimensions (W x D x H) | 440 mm x 357.6 mm x 43.6 mm (17.32 in. x 14.08 in. x 1.72 in.) |
| Weight | 5.64 kg (12.43 lbs) (without packaging materials) |
| Shipping weight | 7.15 kg (15.76 lbs) |
| Environment and Reliability | |
| Fan | 3 x fixed fans |
| Cooling | Air cooling, side-to-rear airflow |
| Acoustic noise | 25°C (77°F): 60 dB |
| Mounting options | Rack |
| Hot swapping of cables | Service ports support hot swapping of cables. |
| MTBF | 400,000 hours |
| Operating temperature | 0°C to +50°C (32°F to 122°F) |
| Storage temperature | ~40°C to +70°C (~40°F to +158°F) |
| Operating humidity | 10% RH to 90% RH (non-condensing) |
| Storage humidity | 5% RH to 95% RH (non-condensing) |
| Altitude | Operating altitude: -500 m to +5,000 m (~1,640.42 ft. to +16,404.20 ft.) Storage altitude: -500 m to +5,000 m (~1,640.42 ft. to +16,404.20 ft.) |
| ESD protection | Contact discharge: 6 kV Air discharge: 8 kV Service port: ±6 kV for common mode Power connector: ±6 kV for both common mode and differential mode |
| Software Specifications | |
| Authentication | |
| RADIUS | Yes |
| 802.1X authentication | Yes |
| Port-based 802.1X authentication | Yes |
| MAC address-based 802.1X authentication | Yes |
| Guest VLAN | Yes |
| Ethernet Switching | |
| Maximum number of VLANs | 4094 |
| Maximum number of MAC address entries | 16000 |
| Interface flow control | Yes |
| IEEE 802.1Q VLAN | Yes |
| VLAN configuration supported on LAN ports | Yes |
| Voice VLAN | Yes |
| STP (IEEE 802.1d) | Yes |
| RSTP (IEEE 802.1w) | Yes |
| MSTP (IEEE 802.1s) | Yes |
| LLDP | Yes |
| LLDP-MED | Yes |
| Static MAC address | Yes |
| MAC address filtering | Yes |
| Static aggregation | Yes |
| LACP | Yes |
| Inbound or outbound rate limiting based on interface traffic | Yes |
| Jumbo frame length (MTU) | 9216 bytes (interface configuration mode) |
| EEE | Yes |
| Cable test | Yes |
| IP Routing | |
| Maximum number of IPv4 static routes | 500 |
| IPv6 routing table size (network route) | 500 |
| Maximum number of IPv6 static routes | 500 |
| IPv4 static route | Yes |
| IPv6 static route | Yes |
| OSPFv2 | Yes |
| OSPFv3 | Yes |
| IP Service | |
| Maximum number of ARP entries | 2000 |
| IPv4 routing table size (host route) | 12000 |
| ARP | Yes |
| IPv4 ping | Yes |
| IPv4 traceroute | Yes |
| ICMPv6 | Yes |
| IPv6 ping | Yes |
| IPv6 traceroute | Yes |
| DNS client | Yes |
| DNSv6 client | Yes |
| DHCP relay | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| Multicast | |
| IGMPv1 snooping | Yes |
| IGMPv2 snooping | Yes |
| Basic IGMPv3 snooping | Yes |
| Full IGMPv3 snooping | Yes |
| IGMP filtering | Yes |
| IGMPv1, v2, and v3 | Yes |
| Network Management and Monitoring | |
| Port mirroring | Yes |
| Mirroring | Yes |
| HTTP login | Yes |
| HTTPS login | Yes |
| RLOG | Yes |
| SON | Yes |
| Syslog | Yes |
| Client auto-discovery | Yes |
| PoE service failure | Yes |
| PoE power overload | Yes |
| Camera detection | Yes |
| Loop alarm | Yes |
| MAC address entries | Yes |
| IP address pool conflicts | Yes |
| Full ARP table | Yes |
| eWeb management | Yes |
| Ruijie Cloud management | Yes |
| Ruijie Reyee App management | Yes |
| SNMPv1, v2c, and v3 | Yes |
| Reliability | |
| Number of VCS members | 2 |
| System dual backup | Yes (Only supported on devices with a factory-installed software version of ReyeeOS 2.320 or later) |
| Enabling dual backup for the partition Uboot (based on a single flash memory) | Yes |
| ERPS | Yes:Stand-alone No:Hot standby |
| Security | |
| Maximum number of ACEs | Number of ACEs in the inbound direction of an interface: 1900 Number of ACEs in the outbound direction of an interface: 0 |
| Port isolation | Yes |
| Broadcast storm control | Yes |
| Multicast storm control | Yes |
| Unknown unicast storm control | Yes |
| DHCP snooping | Yes |
| Standard ACL | Yes |
| Extended MAC ACL | Yes |
| Extended IP ACL | Yes |
| IPv6 ACL | Yes |
| IP-MAC-port binding | Yes |
| ARP anti-spoofing | Yes |
| IP source guard | Yes |
| CPU Protection Policy | Yes |
| System Performance Capacity | |
| Recommended camera limit | 200 W H265: 400 400 W H265: 200 |
| Package Contents | |
| Device | 1 |
| Rubber pad | 4 |
| Power cord retention clip | 1 |
| Screw | 8 M4 x 8 mm cross recessed countersunk head screws |
| Grounding cable | 1 x 1 m (3.28 ft.) |
| Power cord | 1 x 1.5 m (4.92 ft.) |
| Rack-mount bracket | 2 |
| User Manual | 1 |
| Warranty Card | 1 |
