Thông tin sản phẩm

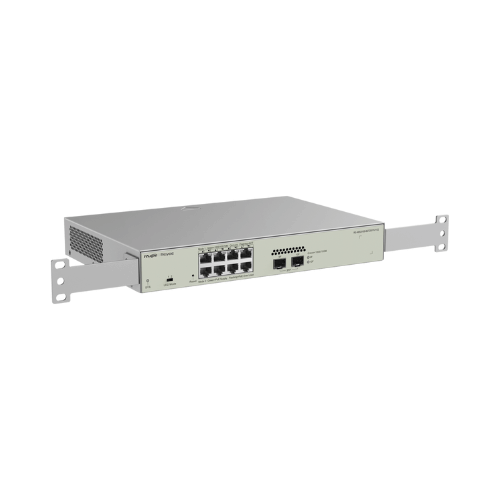

Switch PoE Ruijie RG-NBS3100-8GT2SFP-P-V2: Hiệu Năng Đột Phá 192Gbps Cho Hệ Thống Chuyên Nghiệp
Trong thế giới switch PoE 8 cổng, hầu hết các sản phẩm chỉ dừng lại ở mức hiệu năng cơ bản. Nhưng Ruijie RG-NBS3100-8GT2SFP-P-V2 hoàn toàn khác biệt khi sở hữu tốc độ chuyển mạch lên đến 192Gbps – một con số thường chỉ thấy ở các switch doanh nghiệp cao cấp. Đây không chỉ là một switch PoE thông thường, mà là một thiết bị mạng hiệu năng cao thực thụ.
Tốc Độ Chuyển Mạch 192Gbps – Sức Mạnh Vượt Trội Mọi Giới Hạn
Với tốc độ chuyển mạch lên đến 192Gbps, RG-NBS3100-8GT2SFP-P-V2 mang đến một sức mạnh xử lý gấp nhiều lần so với các switch 8 cổng thông thường. Điều này có nghĩa là gì? Hệ thống của bạn sẽ không bao giờ gặp phải tình trạng nghẽn cổ chai, ngay cả khi tất cả 8 cổng PoE đều hoạt động ở công suất tối đa. Dữ liệu từ các camera 4K/8K, lưu lượng từ các điểm truy cập Wi-Fi 6/6E và truyền file nội bộ đều được xử lý tức thời, mang lại trải nghiệm mạng mượt mà tuyệt đối.
Công Suất 125W – Năng Lượng Dồi Dào Cho 8 Cổng PoE+
Sở hữu tổng công suất 125W cho 8 cổng PoE/PoE+, switch này cung cấp trung bình hơn 15W cho mỗi cổng – một con số lý tưởng để vận hành đồng thời nhiều thiết bị công suất cao. Bạn có thể tự tin kết nối các camera PTZ chuyên nghiệp, access point Wi-Fi 6 enterprise, điện thoại hội nghị IP và các thiết bị IoT đòi hỏi nguồn điện ổn định. Hệ thống quản lý nguồn thông minh đảm bảo phân phối năng lượng tối ưu cho từng thiết bị.
2 Cổng SFP – Kết Nối Chuyên Nghiệp Không Giới Hạn Khoảng Cách
Điểm nhấn đặc biệt của switch này là 2 cổng SFP độc lập, cho phép bạn kết nối quang tốc độ cao đến các switch khác hoặc router cốt lõi. Khác với các switch chỉ có 1 cổng SFP, với 2 cổng SFP, bạn có thể thiết lập kết nối dự phòng hoặc sử dụng tính năng Link Aggregation để tăng gấp đôi băng thông uplink. Đây là tính năng của các switch doanh nghiệp cao cấp, nay được tích hợp trong một thiết bị cỡ nhỏ.
Khả Năng Quản Lý Chuyên Sâu Với 4094 VLAN
Với khả năng hỗ trợ 4094 VLAN, RG-NBS3100-8GT2SFP-P-V2 cho phép bạn thực hiện các cấu hình mạng phức tạp như một chuyên gia. Bạn có thể dễ dàng phân đoạn mạng thành các nhóm logic riêng biệt: tách biệt mạng camera an ninh, mạng khách, mạng nhân viên và mạng quản lý. Kết hợp với Port Isolation, hệ thống của bạn được bảo vệ tối đa khỏi các nguy cơ bảo mật tiềm ẩn.
Thiết Kế Bền Bỉ Cho Môi Trường Đa Dạng
Với khả năng hoạt động ổn định trong dải nhiệt độ từ 0°C đến 50°C, switch này phù hợp với nhiều môi trường lắp đặt khác nhau, từ phòng server có điều hòa đến các tủ viễn thông trong nhà. Kích thước nhỏ gọn nhưng vẫn đảm bảo khả năng tản nhiệt hiệu quả, mang lại tuổi thọ hoạt động lâu dài cho sản phẩm.
Thông số kỹ thuật
| Product Information | |
| Model | RG-NBS3100-8GT2SFP-P-V2 |
| Product Category | Layer 2 |
| Warranty | 5 years |
| Port Specifications | |
| Total number of RJ45 ports | 8 |
| Total number of optical ports | 2 |
| Number of 1GE combo ports | No |
| Number of 1GE SFP ports | 2 |
| Number of 10GE SFP+ ports | No |
| Number of 10/100BASE-T ports | No |
| Number of 10/100/1000BASE-T ports | 8 |
| Number of 10/100/1000/2500BASE-T ports | No |
| Number of 100/1000/2.5G/5G/10GBASE-T ports | No |
| Module slots | No |
| Reset button | 1 |
| DIP switch | Moving the switch to the left (Mode 1): The port LED indicates the switch status. Moving the switch to the right (Mode 2): The port LED indicates the PoE status. |
| Power Supply and Consumption | |
| PoE Out standard | PoE/PoE+ (IEEE 802.3af/at) |
| Number of PoE Out ports | 8 |
| Number of PoE/PoE+ Out ports | 8 |
| Number of PoE/PoE+/PoE++ Out ports | No |
| PoE budget | 125 W |
| PoE power pins | 1–2 (+), 3–6 (-) |
| Power input | 220 V AC power supply: ● Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 2.5 A |
| Maximum power consumption | 11 W (with no PoE load) 145 W (with full PoE load) |
| Power output | No |
| Power supply | Fixed power supply |
| System Specifications | |
| RAM | 256 MB |
| Flash memory | 16 MB |
| Forwarding rate | 14.88 Mpps |
| Switching capacity | 20 Gbps(bit/s) |
| Dimensions and Weight | |
| Casing | Metal |
| Product dimensions (W x D x H) | 300 mm x 205 mm x 44 mm (11.81 in. x 8.07 in. x 1.73 in.) |
| Weight | 1.80 kg (3.97 lbs) (without packaging materials) |
| Shipping weight | 2.50 kg (5.51 lbs) |
| Environment and Reliability | |
| Hot swapping of fan modules | No |
| Fan | Fanless design |
| Cooling | Natural cooling |
| Acoustic noise | No |
| Mounting options | Rack |
| Hot swapping of cables | Service ports support hot swapping of cables. |
| MTBF | 400,000 hours |
| Operating temperature | 0°C to +50°C (32°F to 122°F) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Operating humidity | 10% RH to 90% RH (non-condensing) |
| Storage humidity | 5% RH to 95% RH (non-condensing) |
| Altitude | Operating altitude: -500 m to +5,000 m (-1,640.42 ft. to +16,404.20 ft.) Storage altitude: -500 m to +5,000 m (-1,640.42 ft. to +16,404.20 ft.) |
| Corrosion class | No |
| ESD protection | Contact discharge: 6 kV Air discharge: 8 kV |
| Surge protection | Service port: ±6 kV for common mode Power connector: ±6 kV for both common mode and differential mode |
| Certification and Regulatory Compliance | |
| EMC | EN 55032 EN 61000-3-2 EN 61000-3-3 EN 55035 EN 300 386 |
| Safety compliance | IEC 62368-1 |
| Certification | CE, FCC |
| Software Specifications | |
| RADIUS | Yes |
| 802.1X authentication | Yes |
| Port-based 802.1X authentication | Yes |
| MAC address-based 802.1X authentication | Yes |
| Guest VLAN | Yes |
| PoE watchdog | Yes |
| Online upgrade | Yes |
| Maximum number of VLANs | 4094 |
| Maximum number of MAC address entries | 8000 |
| Interface flow control | Yes |
| MAC address-based VLAN | No |
| IP subnet – based VLAN assignment | No |
| IEEE 802.1Q VLAN | Yes |
| Basic QinQ | No |
| VLAN configuration supported on LAN ports | Yes |
| Voice VLAN | Yes |
| STP (IEEE 802.1d) | Yes |
| RSTP (IEEE 802.1w) | Yes |
| MSTP (IEEE 802.1s) | Yes |
| LLDP | Yes |
| LLDP-MED | Yes |
| Static MAC address | Yes |
| MAC address filtering | Yes |
| Static aggregation | Yes |
| LACP | Yes |
| Inbound or outbound rate limiting based on interface traffic | Yes |
| Jumbo frame length (MTU) | 9216 bytes (global configuration mode) |
| EEE | Yes |
| Cable test | Yes |
| IPv4 static route | No |
| IPv6 static route | No |
| OSPFv2 | No |
| OSPFv3 | No |
| Maximum number of ARP entries | 1000 |
| ARP | Yes |
| IPv4 ping | Yes |
| IPv4 traceroute | Yes |
| ICMPv6 | Yes |
| IPv6 ping | Yes |
| IPv6 traceroute | Yes |
| DNS client | Yes |
| DNSv6 client | Yes |
| DHCP relay | No |
| DHCP server | No |
| DHCP client | Yes |
| IGMPv1 snooping | Yes |
| IGMPv2 snooping | Yes |
| Basic IGMPv3 snooping | Yes |
| Full IGMPv3 snooping | No |
| IGMP filtering | Yes |
| IGMPv1, v2, and v3 | No |
| Port mirroring | Yes |
| Mirroring | Yes |
| HTTP login | Yes |
| HTTPS login | Yes |
| RLOG | Yes |
| SON | Yes |
| Syslog | Yes |
| Client auto-discovery | Yes |
| PoE service failure | Yes |
| PoE power overload | Yes |
| SSH | No |
| Camera detection | Yes |
| Loop alarm | Yes |
| MAC address entries | Yes |
| IP address pool conflicts | Yes |
| Full ARP table | No |
| eWeb management | Yes |
| Ruijie Cloud management | Yes |
| Ruijie Reyee App management | Yes |
| SNMPv1, v2c, and v3 | Yes |
| System dual backup | No |
| Enabling dual backup for the partition Uboot (based on a single flash memory) | No |
| Load balancing | No |
| ERPS | Yes |
| Maximum number of ACEs | Number of ACEs in the inbound direction of an interface: 1200 Number of ACEs in the outbound direction of an interface: 0 |
| Port isolation | Yes |
| Broadcast storm control | Yes |
| Multicast storm control | Yes |
| Unknown unicast storm control | Yes |
| DHCP snooping | Yes |
| Standard ACL | Yes |
| Extended MAC ACL | Yes |
| Extended IP ACL | Yes |
| IPv6 ACL | Yes |
| IP-MAC-port binding | Yes |
| ARP anti-spoofing | Yes |
| IP source guard | Yes |
| CPU Protection Policy | Yes |
| System Performance Capacity | |
| Recommended camera limit | 200 W H265: 80 400 W H265: 40 |
| Package Contents | |
| Device | 1 |
| Rubber pad | 4 |
| Power cord retention clip | 1 |
| Screw | 6 M3 x 6 mm cross recessed countersunk head screws |
| Grounding cable | 1 x 1 m (3.28 ft.) |
| Power cord | 1 x 1.5 m (4.92 ft.) |
| Rack-mount bracket | 2 |
| User Manual | 1 |
| Warranty Card | 1 |
