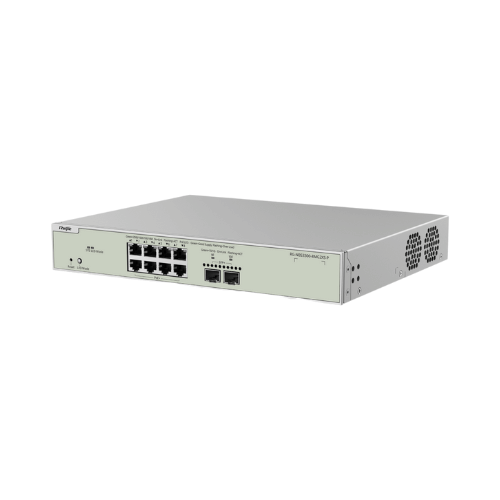

Switch PoE Ruijie RG-NBS3300-8MG2XS-P: Bước Nhảy Vọt Với Công Nghệ Multi-Gigabit 2.5G
Trong một thế giới mà tốc độ mạng ngày càng trở nên quan trọng, việc bị giới hạn ở tốc độ Gigabit (1Gbps) có thể trở thành rào cản cho hiệu suất làm việc. Switch PoE Ruijie RG-NBS3300-8MG2XS-P xuất hiện như một giải pháp đột phá, mang đến công nghệ Multi-Gigabit 2.5G cho 8 cổng PoE, mở ra kỷ nguyên mới cho các hệ thống mạng yêu cầu băng thông cực cao.
Công Nghệ Multi-Gigabit 2.5G – Tốc Độ Gấp 2.5 Lần Gigabit Thông Thường
Điểm khác biệt lớn nhất của RG-NBS3300-8MG2XS-P chính là 8 cổng Multi-Gigabit 10/100/1000/2500BASE-T. Không như các switch thông thường chỉ dừng lại ở 1Gbps, switch này có thể cung cấp tốc độ lên đến 2.5Gbps cho mỗi cổng. Điều này có nghĩa là bạn có tốc độ truyền dữ liệu nhanh hơn 2.5 lần, lý tưởng cho các ứng dụng đòi hỏi băng thông lớn như truyền tải file dung lượng cao, streaming video 4K/8K, và các tác vụ đồ họa chuyên nghiệp.
Công Suất 240W – Nguồn Điện Dồi Dào Cho Thiết Bị Cao Cấp
Với tổng công suất 240W cho 8 cổng PoE/PoE+, switch này cung cấp trung bình 30W cho mỗi cổng – đủ để vận hành các thiết bị công suất cao nhất. Bạn có thể tự tin kết nối các access point Wi-Fi 6/6E enterprise, camera PTZ chuyên nghiệp, hệ thống điện thoại hội nghị IP cao cấp và các thiết bị IoT thế hệ mới mà không cần lo lắng về tình trạng thiếu nguồn.
2 Cổng SFP+ 10Gbps – Kết Nối Tốc Độ Siêu Cao
Để tận dụng tối đa lợi thế Multi-Gigabit, switch được trang bị 2 cổng SFP+ 10Gbps cho kết nối uplink. Với tốc độ 10Gbps, các cổng này đảm bảo rằng toàn bộ lưu lượng từ 8 cổng Multi-Gigabit đều có đường truyền đủ rộng để về trung tâm dữ liệu mà không gây nghẽn cổ chai. Bạn có thể sử dụng tính năng Link Aggregation để kết hợp 2 cổng này thành một kết nối 20Gbps.
Hiệu Năng 80Gbps – Xử Lý Mượt Mà Ở Tốc Độ Cao
Để đảm bảo 10 cổng (8 Multi-Gigabit PoE + 2 SFP+ 10G) cùng hoạt động ở hiệu suất tối đa, switch được trang bị tốc độ chuyển mạch lên đến 80Gbps và khả năng xử lý 58.72 triệu gói tin mỗi giây. Đây là một sức mạnh xử lý ấn tượng, đảm bảo hiệu suất ổn định ngay cả khi tất cả các cổng đều hoạt động đồng thời ở tốc độ cao nhất.
Tương Thích Ngược – Bảo Vệ Đầu Tư Hiện Có
Một ưu điểm tuyệt vời của công nghệ Multi-Gigabit là khả năng tương thích ngược hoàn toàn với các thiết bị Gigabit (1Gbps), Fast Ethernet (100Mbps) và thậm chí cả 10Mbps. Switch sẽ tự động đàm phán tốc độ phù hợp với thiết bị kết nối, cho phép bạn nâng cấp dần dần hệ thống mà không cần thay thế toàn bộ thiết bị hiện có.
Thông số kỹ thuật
| Product Information | |
| Model | RG-NBS3300-8MG2XS-P |
| Product Category | Layer 2+ |
| Warranty | 5 years |
| Port Specifications | |
| Total number of RJ45 ports | 8 |
| Total number of optical ports | 2 |
| Number of 10GE SFP+ ports | 2 |
| Number of 10/100/1000/2500BASE-T ports | 8 |
| Reset button | 1 |
| Power Supply and Consumption | |
| PoE Out standard | PoE/PoE+ (IEEE 802.3af/at) |
| Number of PoE Out ports | 8 |
| Number of PoE/PoE+ Out ports | 8 |
| Number of PoE/PoE+/PoE++ Out ports | No |
| PoE budget | 240 W |
| Power input | 220 V AC power supply: • Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz • Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz • Maximum input current: 4.5 A |
| Maximum power consumption | 27 W (with no PoE load) 278 W (with full PoE load) |
| Power supply | Fixed power supply |
| System Specifications | |
| RAM | 512 MB |
| Flash memory | 256 MB |
| Forwarding rate | 59.52 Mpps |
| Switching capacity | 80 Gbps(bit/s) |
| Dimensions and Weight | |
| Casing | Metal |
| Product dimensions (W x D x H) | 300 mm x 233 mm x 43.6 mm (11.81 in. x 9.17 in. x 1.72 in.) |
| Weight | 2.64 kg (5.82 lbs) (without packaging materials) |
| Shipping weight | 3.45 kg (7.61 lbs) |
| Environment and Reliability | |
| Fan | 2 x fixed fans |
| Cooling | Air cooling, left-to-right airflow |
| Acoustic noise | 25°C (77°F): 40 dB |
| Mounting options | Rack |
| Hot swapping of cables | Service ports support hot swapping of cables. |
| MTBF | 400,000 hours |
| Operating temperature | 0°C to +50°C (32°F to 122°F) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Operating humidity | 10% RH to 90% RH (non-condensing) |
| Storage humidity | 5% RH to 95% RH (non-condensing) |
| Altitude | Operating altitude: -500 m to +5,000 m (-1,640.42 ft. to +16,404.20 ft.) Storage altitude: -500 m to +5,000 m (-1,640.42 ft. to +16,404.20 ft.) |
| ESD protection | Contact discharge: 6 kV Air discharge: 8 kV |
| Surge protection | Service port: ±6 kV for common mode Power connector: ±6 kV for both common mode and differential mode |
| Software Specifications | |
| Authentication | |
| RADIUS | Yes |
| 802.1X authentication | Yes |
| Port-based 802.1X authentication | Yes |
| MAC address-based 802.1X authentication | Yes |
| Guest VLAN | Yes |
| Ethernet Switching | |
| Maximum number of VLANs | 4094 |
| Maximum number of MAC address entries | 16000 |
| Interface flow control | Yes |
| IEEE 802.1Q VLAN | Yes |
| VLAN configuration supported on LAN ports | Yes |
| Voice VLAN | Yes |
| STP (IEEE 802.1d) | Yes |
| RSTP (IEEE 802.1w) | Yes |
| MSTP (IEEE 802.1s) | Yes |
| LLDP | Yes |
| LLDP-MED | Yes |
| Static MAC address | Yes |
| MAC address filtering | Yes |
| Static aggregation | Yes |
| LACP | Yes |
| Inbound or outbound rate limiting based on interface traffic | Yes |
| Jumbo frame length (MTU) | 9216 bytes (interface configuration mode) |
| EEE | Yes |
| Cable test | Yes |
| IP Routing | |
| Maximum number of IPv4 static routes | 64 |
| IPv6 routing table size (network route) | 128 |
| Maximum number of IPv6 static routes | 64 |
| IPv4 static route | Yes |
| IPv6 static route | Yes |
| IP Service | |
| Maximum number of ARP entries | 1000 |
| IPv4 routing table size (host route) | 6000 |
| ARP | Yes |
| IPv4 ping | Yes |
| IPv4 traceroute | Yes |
| ICMPv6 | Yes |
| IPv6 ping | Yes |
| IPv6 traceroute | Yes |
| DNS client | Yes |
| DNSv6 client | Yes |
| DHCP relay | Yes |
| DHCP client | Yes |
| Multicast | |
| IGMPv1 snooping | Yes |
| IGMPv2 snooping | Yes |
| Basic IGMPv3 snooping | Yes |
| Full IGMPv3 snooping | Yes |
| IGMP filtering | Yes |
| IGMPv1, v2, and v3 | No |
| Network Management and Monitoring | |
| Fan speed adjustment | Automatic speed adjustment |
| Port mirroring | Yes |
| Mirroring | Yes |
| HTTP login | Yes |
| HTTPS login | Yes |
| RLOG | Yes |
| SON | Yes |
| Syslog | Yes |
| Client auto-discovery | Yes |
| PoE service failure | Yes |
| PoE power overload | Yes |
| Camera detection | Yes |
| Loop alarm | Yes |
| MAC address entries | Yes |
| IP address pool conflicts | Yes |
| Full ARP table | Yes |
| eWeb management | Yes |
| Ruijie Cloud management | Yes |
| Ruijie Reyee App management | Yes |
| SNMPv1, v2c, and v3 | Yes |
| Reliability | |
| System dual backup | Yes (Only supported on devices with a factory-installed software version of ReyeeOS 2.320 or later) |
| Enabling dual backup for the partition Uboot (based on a single flash memory) | Yes |
| ERPS | Yes |
| Security | |
| Maximum number of ACEs | Number of ACEs in the inbound direction of an interface: 1900 Number of ACEs in the outbound direction of an interface: 0 |
| Port isolation | Yes |
| Broadcast storm control | Yes |
| Multicast storm control | Yes |
| Unknown unicast storm control | Yes |
| DHCP snooping | Yes |
| Standard ACL | Yes |
| Extended MAC ACL | Yes |
| Extended IP ACL | Yes |
| IPv6 ACL | Yes |
| IP-MAC-port binding | Yes |
| ARP anti-spoofing | Yes |
| IP source guard | Yes |
| CPU Protection Policy | Yes |
| System Performance Capacity | |
| Recommended camera limit | 200 W H265: 300 400 W H265: 150 |
| Package Contents | |
| Device | 1 |
| Rubber pad | 4 |
| Power cord retention clip | 1 |
| Screw | 8 M3 x 6 mm cross recessed countersunk head screws |
| Grounding cable | 1 x 1 m (3.28 ft.) |
| Power cord | 1 x 1.5 m (4.92 ft.) |
| Rack-mount bracket | 2 |
| User Manual | 1 |
| Warranty Card | 1 |
