Thông tin sản phẩm

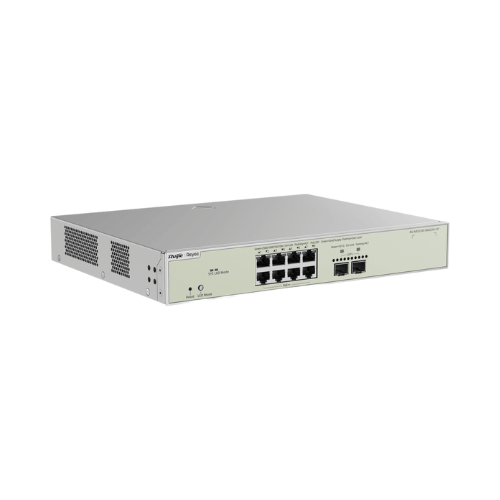

Switch PoE Ruijie RG-NBS5300-8MG2XS-UP: Bộ Chuyển Mạch Layer 3 Multi-Gigabit – Trái Tim Thông Minh Cho Hệ Thống Mạng Hiện Đại
Khi hệ thống mạng của bạn phát triển vượt ra ngoài nhu cầu cơ bản, việc sở hữu một switch không chỉ đơn thuần là cấp nguồn PoE mà còn phải có khả năng định tuyến thông minh và xử lý dữ liệu tốc độ cao trở nên cấp thiết. Switch Layer 3 Ruijie RG-NBS5300-8MG2XS-UP kết hợp hoàn hảo công nghệ Multi-Gigabit 2.5G với khả năng định tuyến Layer 3, biến nó thành bộ não thực thụ cho mọi hệ thống mạng chuyên nghiệp.
Layer 3 Switch – Không Chỉ Kết Nối Mà Còn Định Tuyến Thông Minh
Khác với các switch Layer 2 thông thường, RG-NBS5300-8MG2XS-UP là một Switch Layer 3 đích thực với khả năng thực hiện định tuyến tĩnh (Static Routing). Điều này có nghĩa switch không chỉ đơn thuần chuyển tiếp dữ liệu trong cùng một mạng, mà còn có thể định tuyến lưu lượng giữa các mạng con (VLAN) khác nhau một cách thông minh. Bạn có thể thiết lập các quy tắc định tuyến phức tạp, tối ưu hóa lưu lượng mạng và giảm tải cho router chính.
Multi-Gigabit 2.5G – Tốc Độ Vượt Trội Cho Ứng Dụng Hiện Đại
Với 8 cổng Multi-Gigabit 10/100/1000/2500BASE-T, switch này phá vỡ mọi giới hạn về tốc độ của chuẩn Gigabit thông thường. Tốc độ 2.5Gbps cho phép bạn khai thác tối đa hiệu năng của các access point Wi-Fi 6/6E/7, máy trạm đồ họa chuyên nghiệp, hệ thống lưu trữ NAS tốc độ cao và các thiết bị yêu cầu băng thông lớn khác. Mỗi cổng tự động đàm phán tốc độ phù hợp với thiết bị kết nối.
Quality of Service (QoS) – Ưu Tiên Hóa Lưu Lượng Thông Minh
Là một switch Layer 3, RG-NBS5300-8MG2XS-UP được tích hợp tính năng QoS (Quality of Service) mạnh mẽ. Bạn có thể phân loại và ưu tiên lưu lượng cho các ứng dụng quan trọng như cuộc gọi VoIP, hội nghị truyền hình, hệ thống ERP, đảm bảo chúng luôn hoạt động mượt mà ngay cả khi mạng đang bận rộn. Đây là tính năng quan trọng để đảm bảo chất lượng dịch vụ cho các ứng dụng then chốt.
DHCP Server – Tự Động Quản Lý Địa Chỉ IP
Switch có khả năng hoạt động như một máy chủ DHCP, tự động cấp phát địa chỉ IP cho các thiết bị trong mạng. Tính năng này giúp giảm tải cho router và đơn giản hóa việc quản lý mạng, đặc biệt hữu ích trong các hệ thống có nhiều thiết bị di động kết nối và ngắt kết nối thường xuyên.
2 Cổng SFP+ 10Gbps – Kết Nối Tốc Độ Siêu Cao
Để tận dụng tối đa lợi thế Multi-Gigabit, switch được trang bị 2 cổng SFP+ 10Gbps cho kết nối uplink. Với tốc độ gấp 10 lần kết nối Gigabit thông thường, các cổng này đảm bảo rằng toàn bộ lưu lượng từ 8 cổng Multi-Gigabit đều có đường truyền đủ rộng về trung tâm dữ liệu mà không gây nghẽn cổ chai.
Thông số kỹ thuật
| Product Information | |
| Model | RG-NBS5300-8MG2XS-UP |
| Product Category | Layer 3 |
| Warranty | 5 years |
| Port Specifications | |
| Total number of RJ45 ports | 8 |
| Total number of optical ports | 2 |
| Number of 10GE SFP+ ports | 2 |
| Number of 10/100/1000/2500BASE-T ports | 8 |
| Reset button | 1 |
| Power Supply and Consumption | |
| PoE Out standard | PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) |
| Number of PoE Out ports | 8 |
| Number of PoE/PoE+ Out ports | 8 |
| Number of PoE/PoE+/PoE++ Out ports | 8 |
| PoE budget | 370 W |
| Power input | 220 V AC power supply: • Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz • Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz • Maximum input current: 6 A |
| Maximum power consumption | 450 W |
| Power supply | Fixed power supply |
| System Specifications | |
| RAM | 512 MB |
| Flash memory | 256 MB |
| Forwarding rate | 59.52 Mpps |
| Switching capacity | 80 Gbps(bit/s) |
| Dimensions and Weight | |
| Casing | Metal |
| Product dimensions (W x D x H) | 300 mm x 233 mm x 43.6 mm (11.81 in. x 9.17 in. x 1.72 in.) |
| Weight | 2.5 kg (5.51 lbs) (without packaging materials) |
| Shipping weight | 3.25 kg (7.17 lbs) |
| Environment and Reliability | |
| Fan | 2 x fixed fans |
| Cooling | Air cooling, left-to-right airflow |
| Acoustic noise | 25°C (77°F): 40 dB |
| Hot swapping of cables | Service ports support hot swapping of cables. |
| MTBF | 400,000 hours |
| Operating temperature | 0°C to +50°C (32°F to 122°F) |
| Storage temperature | ~40°C to +70°C (~40°F to +158°F) |
| Operating humidity | 10% RH to 90% RH (non-condensing) |
| Storage humidity | 5% RH to 95% RH (non-condensing) |
| Altitude | Operating altitude: -500 m to +5,000 m (~1,640.42 ft. to +16,404.20 ft.) Storage altitude: -500 m to +5,000 m (~1,640.42 ft. to +16,404.20 ft.) |
| ESD protection | Contact discharge: 6 kV Air discharge: 8 kV |
| Surge protection | Service port: ±6 kV for common mode Power connector: ±6 kV for both common mode and differential mode |
| Software Specifications | |
| Authentication | |
| RADIUS | Yes |
| 802.1X authentication | Yes |
| Port-based 802.1X authentication | Yes |
| MAC address-based 802.1X authentication | Yes |
| Guest VLAN | Yes |
| Ethernet Switching | |
| Maximum number of VLANs | 4094 |
| Maximum number of MAC address entries | 16000 |
| Interface flow control | Yes |
| IEEE 802.1Q VLAN | Yes |
| VLAN configuration supported on LAN ports | Yes |
| Voice VLAN | Yes |
| STP (IEEE 802.1d) | Yes |
| RSTP (IEEE 802.1w) | Yes |
| MSTP (IEEE 802.1s) | Yes |
| LLDP | Yes |
| LLDP-MED | Yes |
| Static MAC address | Yes |
| MAC address filtering | Yes |
| Static aggregation | Yes |
| LACP | Yes |
| Inbound or outbound rate limiting based on interface traffic | Yes |
| Jumbo frame length (MTU) | 9216 bytes (interface configuration mode) |
| EEE | Yes |
| Cable test | Yes |
| IP Routing | |
| Maximum number of IPv4 static routes | 500 |
| IPv6 routing table size (network route) | 128 |
| Maximum number of IPv6 static routes | 128 |
| IPv4 static route | Yes |
| IPv6 static route | Yes |
| OSPFv2 | Yes |
| OSPFv3 | Yes |
| IP Service | |
| Maximum number of ARP entries | 2000 |
| IPv4 routing table size (host route) | 6000 |
| ARP | Yes |
| IPv4 ping | Yes |
| IPv4 traceroute | Yes |
| ICMPv6 | Yes |
| IPv6 ping | Yes |
| IPv6 traceroute | Yes |
| DNS client | Yes |
| DNSv6 client | Yes |
| DHCP relay | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| Multicast | |
| IGMPv1 snooping | Yes |
| IGMPv2 snooping | Yes |
| Basic IGMPv3 snooping | Yes |
| Full IGMPv3 snooping | Yes |
| IGMP filtering | Yes |
| IGMPv1, v2, and v3 | Yes |
| Network Management and Monitoring | |
| Port mirroring | Yes |
| Mirroring | Yes |
| HTTP login | Yes |
| HTTPS login | Yes |
| RLOG | Yes |
| SON | Yes |
| Syslog | Yes |
| Client auto-discovery | Yes |
| PoE service failure | Yes |
| PoE power overload | Yes |
| Camera detection | Yes |
| Loop alarm | Yes |
| MAC address entries | Yes |
| IP address pool conflicts | Yes |
| Full ARP table | Yes |
| eWeb management | Yes |
| Ruijie Cloud management | Yes |
| Ruijie Reyee App management | Yes |
| SNMPv1, v2c, and v3 | Yes |
| Reliability | |
| Number of VCS members | 2 |
| System dual backup | Yes (Only supported on devices with a factory-installed software version of ReyeeOS 2.320 or later) |
| Enabling dual backup for the partition Uboot (based on a single flash memory) | Yes |
| ERPS | Yes:Stand-alone No:Hot standby |
| Security | |
| Maximum number of ACEs | Number of ACEs in the inbound direction of an interface: 1900 Number of ACEs in the outbound direction of an interface: 0 |
| Port isolation | Yes |
| Broadcast storm control | Yes |
| Multicast storm control | Yes |
| Unknown unicast storm control | Yes |
| DHCP snooping | Yes |
| Standard ACL | Yes |
| Extended MAC ACL | Yes |
| Extended IP ACL | Yes |
| IPv6 ACL | Yes |
| IP-MAC-port binding | Yes |
| ARP anti-spoofing | Yes |
| IP source guard | Yes |
| CPU Protection Policy | Yes |
| System Performance Capacity | |
| Recommended camera limit | 200 W H265: 350 400 W H265: 170 |
| Package Contents | |
| Device | 1 |
| Rubber pad | 4 |
| Power cord retention clip | 1 |
| Screw | 8 M3 x 6 mm cross recessed countersunk head screws |
| Grounding cable | 1 x 1 m (3.28 ft.) |
| Power cord | 1 x 1.5 m (4.92 ft.) |
| Rack-mount bracket | 2 |
| User Manual | 1 |
| Warranty Card | 1 |
