Camera
|
|
Image Sensor
|
1/2.8″ CMOS
|
|
Max. Resolution
|
1920 (H) × 1080 (V)
|
|
ROM
|
4 GB
|
|
RAM
|
1 GB
|
|
Scanning System
|
Progressive
|
|
Electronic Shutter Speed
|
Auto/Manual 1/3 s–1/100,000 s
|
|
Min. Illumination
|
0.0007 lux@F1.6(Color, 30 IRE)
0.0004 lux@F1.6(B/W, 30 IRE)
0 lux (Illuminator on)
|
|
S/N Ratio
|
>56 dB
|
|
Illumination Distance
|
50 m (164.04 ft) (IR)
|
|
Illuminator On/Off Control
|
Auto;Manual
|
|
Illuminator Number
|
2 (IR LED)
|
|
Angle Adjustment
|
Pan: 0°–355°
Tilt: 0°–80°
Rotation:0°–355°
|
|
Lens
|
|
Lens Type
|
Fixed-focal
|
|
Lens Mount
|
M12
|
|
Focal Length
|
2.8 mm; 3.6 mm; 6 mm
|
|
Max. Aperture
|
F1.6
|
|
Field of View
|
2.8 mm: H: 106°; V: 56°; D: 127°
3.6 mm: H: 88°; V: 44°; D: 105°
6 mm: H: 54°; V: 29°; D: 63°
|
|
Iris Control
|
Fixed
|
|
Close Focus Distance
|
2.8 mm: 0.7 m (2.30 ft)
3.6 mm: 1.3 m (4.27 ft)
6 mm: 2.6 m (8.53 ft)
|
|
DORI Distance
|
Lens
|
Detect
|
Observe
|
Recognize
|
Identify
|
|
2.8 mm
|
43.9 m (144.03 ft)
|
17.5 m
(57.41 ft)
|
8.8 m
(28.87 ft)
|
4.4 m
(14.44 ft)
|
|
3.6 mm
|
58.9 m (193.24 ft)
|
23.6 m
(77.43 ft)
|
11.8 m
(38.71 ft)
|
5.9 m
(19.36 ft)
|
|
6 mm
|
85.5 m (280.51 ft)
|
34.2 m (112.20 ft)
|
17.1 m
(56.10 ft)
|
8.6 m
(28.22 ft)
|
|
Intelligence
|
|
IVS (Perimeter Protection)
|
Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection
|
|
Smart Object Detection
|
Smart abandoned object; smart missing object
|
|
SMD 3.0
|
Less false alarm, longer detection distance
|
|
AI SSA
|
Yes
|
|
Face Detection
|
Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting
|
|
People Counting
|
Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management, generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.
|
|
Heat Map
|
Yes
|
|
Video Metadata
|
Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload.
Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling.
Non-motor vehicle attributes: type, color, number of people, top type and color, hat.
Human body attributes: gender, top/bottom type and color, bag, hat and umbrella.
Face attributes: gender, age, expressions, glasses, face mask and beard.
|
|
Smart Search
|
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
|
|
Smart Sound Detection
|
Yes
|
|
Video
|
|
Video Compression
|
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
|
|
Smart Codec
|
Smart H.265+; Smart H.264+
|
|
AI Coding
|
AI H.265; AI H.264
|
|
Video Frame Rate
|
Main stream: 1080p@1–25/30 fps)
Sub stream: D1@(1–25/30 fps)
Third stream: 1080p@(1–25/30 fps)
Fourth stream: 720p@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
|
|
Stream Capability
|
4 streams
|
|
Resolution
|
1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
|
|
Bit Rate Control
|
CBR/VBR
|
|
Video Bit Rate
|
H.264: 32 kbps–12032 kbps
H.265: 12 kbps–7424 kbps
|
|
Day/Night
|
Auto(ICR)/Color/B/W
|
|
BLC
|
Yes
|
|
HLC
|
Yes
|
|
WDR
|
120 dB
|
|
Scene Self-adaptation (SSA)
|
Yes
|
|
White Balance
|
Auto; natural; street lamp; outdoor; manual; regional custom
|
|
Gain Control
|
Auto
|
|
Noise Reduction
|
3D NR
|
|
Motion Detection
|
OFF/ON (4 areas, rectangular)
|
|
Region of Interest (RoI)
|
Yes (4 areas)
|
|
Smart Illumination
|
Yes
|
|
Defog
|
Yes
|
|
Image Rotation
|
0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)
|
|
Mirror
|
Yes
|
|
Privacy Masking
|
8 areas
|
|
Audio
|
|
Built-in MIC
|
Yes
|
|
Audio Compression
|
G.711a; G.711Mu; PCM; G.726; G.723
|
|
Alarm
|
|
Alarm Event
|
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception
|
|
Network
|
|
Network Port
|
RJ-45 (10/100 Enhancement Base-T)
|
|
SDK and API
|
Yes
|
|
Network Protocol
|
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
|
|
Interoperability
|
ONVIF (Profile S/Profile G/Profile T); CGI
|
|
User/Host
|
20 (Total bandwidth: 80 M)
|
|
Storage
|
FTP; SFTP; Micro SD card (support max. 512 GB); NAS
|
|
Browser
|
IE: IE 9 and later
Chrome: Chrome 102 and later
Firefox: Firefox 88 and later
|
|
Management Software
|
KBiVMS, KBView Plus
|
|
Mobile Client
|
iOS; Android
|
|
Cyber Security
|
Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification
|
|
Port
|
|
Audio Input
|
1 channel (RCA port)
|
|
Audio Output
|
1 channel (RCA port)
|
|
Alarm Input
|
1 channel in: wet contact, 5 mA 3V–5 VDC
|
|
Alarm Output
|
1 channel out: wet contact, 300mA 12V DC
|
|
Power
|
|
Power Supply
|
12 VDC/PoE (802.3af)/ePoE
|
|
Power Consumption
|
Basic: 4.1 W (12 VDC); 5.2 W (PoE)
Max. (H.265 + WDR+ Intelligence on + IR on): 6.8 W (12 VDC); 8.8 W (PoE)
|
|
Environment
|
|
Operating Temperature
|
–40 °C to +60 °C (–40 °F to +140 °F)
|
|
Operating Humidity
|
≤95%
|
|
Storage Temperature
|
–40 °C to +60 °C (–40 °F to +140 °F)
|
|
Storage Humidity
|
10%–95% (RH), non-condensing
|
|
Protection
|
IP67; IK10
|
|
Structure
|
|
Casing Material
|
Metal
|
|
Product Dimensions
|
94.0 mm × Φ122.0 mm (3.70″ × Φ4.80″)
|
|
Net Weight
|
712.9 g (1.57 lb)
|
|
Gross Weight
|
986 g (2.17 lb)
|

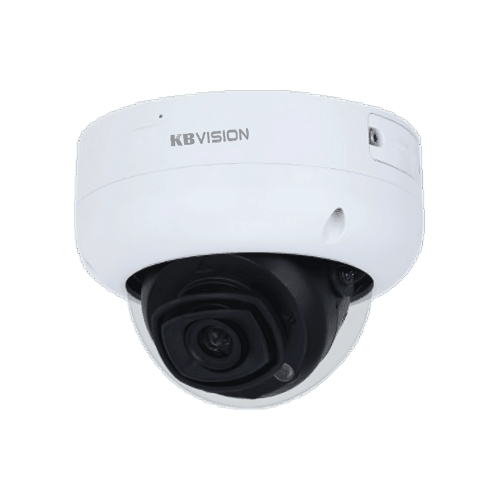

Đánh giá Camera ip 2mp kbvision KX-DAi2204N-EAB
