| Camera |
| Image Sensor |
1/2.7″ Progressive Scan CMOS |
| Max. Resolution |
1920 × 1080 |
| Min. Illumination |
Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR |
| Shutter Time |
1/3 s to 1/100, 000 s |
| Day & Night |
IR cut filter |
| Angle Adjustment |
Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens |
| Focal Length & FOV |
2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2° 4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6° |
| Lens Mount |
M12 |
| Iris Type |
Fixed |
| Aperture |
F2.0 |
| Illuminator |
| Supplement Light Type |
IR |
| Supplement Light Range |
Up to 30 m |
| Smart Supplement Light |
Yes |
| IR Wavelength |
850 nm |
| Video |
| Main Stream |
50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream |
50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Video Compression |
Main Stream: H.265/H.264/H.264+/H.265+ Sub-Stream: H.265/H.264/MJPEG |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| H.264 Type |
Baseline Profile/Main Profile/High Profile |
| H.265 Type |
Main Profile |
| Region of Interest (ROI) |
1 fixed region for main stream |
| Audio |
| Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC |
| Audio Bit Rate |
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC) |
| Audio Sampling Rate |
8 kHz/16 kHz |
| Environment Noise Filtering |
Yes |
| Network |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
| Simultaneous Live View |
Up to 6 channels |
| API |
Open Network Video Interface, ISAPI |
| User/Host |
Up to 32 users. 3 levels: administrator, operator and user |
| Network Storage |
MicroSD/SDHC/SDXC card (256 GB) local storage |
| Client |
iVMS-4200, Hik-Connect |
| Web Browser |
Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| Image |
| Image Settings |
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser. |
| Day/Night Switch |
Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) |
Digital WDR |
| SNR |
≥ 52 dB |
| Image Enhancement |
BLC, 3D DNR |
| Interface |
| Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage |
Built-in memory card slot, support microSD card, up to 256 GB |
| Built-in Microphone |
Yes |
| Reset Key |
Yes |
| Event |
| Basic Event |
Motion detection, video tampering alarm, exception |
| Linkage |
Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture |
| General |
| Power |
12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W |
| Dimension |
Ø110 mm × 85.3 mm (Ø4.3″ × 3.4″) |
| Package Dimension |
150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″) |
|
Approx. 320 g (0.7 lb.) |
| With Package Weight |
Approx. 556 g (1.2 lb.) |
| Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
| Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
| Language |
English, Ukrainian |
| General Function |
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Approval |
| EMC |
FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
| Safety |
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) |
| Environment |
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection |
IP67 (IEC 60529-2013) |

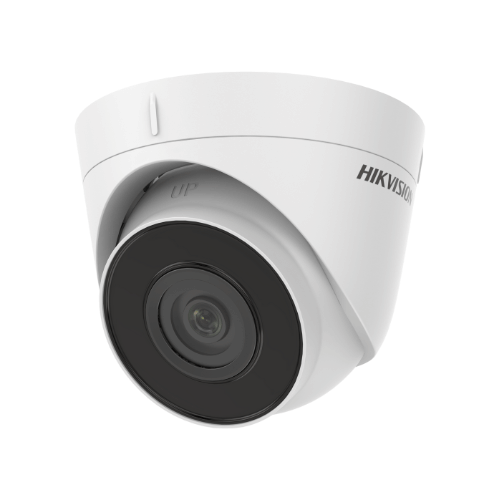

Đánh giá Camera ip 2mp hikvision DS-2CD1323G0-IUF
