Camera
|
|
Image Sensor
|
1/2.7″ CMOS
|
|
Max. Resolution
|
2960 (H) × 1668 (V)
|
|
ROM
|
4 GB
|
|
RAM
|
1 GB
|
|
Scanning System
|
Progressive
|
|
Electronic Shutter Speed
|
Auto/Manual 1/3 s–1/100,000 s
|
|
Min. Illumination
|
0.0009 lux@F1.5 (Color, 30 IRE)
0.0005 lux@F1.5 (B/W, 30 IRE)
0 lux (Illuminator on)
|
|
S/N Ratio
|
>56 dB
|
|
Illumination Distance
|
40 m (131.23 ft) (IR)
|
|
Illuminator On/Off Control
|
Auto;Zoomprio; Manual
|
|
Illuminator Number
|
3 (IR LED)
|
|
Angle Adjustment
|
Pan: 0°–355°; Tilt: 0°–65°; Rotation: 0°–355°
|
|
Lens
|
|
Lens Type
|
Motorized vari-focal
|
|
Lens Mount
|
φ14
|
|
Focal Length
|
2.7 mm–13.5 mm
|
|
Max. Aperture
|
F1.5
|
|
Field of View
|
H: 114°–32°; V: 58°–17°; D: 138°–36°
|
|
Iris Control
|
Auto
|
|
Close Focus Distance
|
0.8 m (2.62 ft)
|
|
DORI Distance
|
Lens
|
Detect
|
Observe
|
Recognize
|
Identify
|
|
W
|
64.0 m (209.97 ft)
|
25.6 m
(83.99 ft)
|
12.8 m
(41.99 ft)
|
6.4 m
(20.99 ft)
|
|
T
|
210.0 m (688.98 ft)
|
84.0 m
(275.89 ft)
|
42.0 m
(137.80 ft)
|
21.0 m
(68.90 ft)
|
|
Intelligence
|
|
IVS (Perimeter Protection)
|
Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection
|
|
Smart Object Detection
|
Smart abandoned object; smart missing object
|
|
SMD 3.0
|
Less false alarm, longer detection distance
|
|
AI SSA
|
Yes
|
|
Face Detection
|
Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
|
|
People Counting
|
Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management; generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.
|
|
Heat Map
|
Yes
|
|
Video Metadata
|
Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload.
Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes: seatbelt, smoking, calling.
Non-motor vehicle attributes: type, color, number of people, top type and color, hat.
Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard.
|
|
Smart Search
|
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
|
|
Smart Sound Detection
|
Yes
|
|
Video
|
|
Video Compression
|
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
|
|
Smart Codec
|
Smart H.265+; Smart H.264+
|
|
AI Coding
|
AI H.265; AI H.264
|
|
Video Frame Rate
|
Main stream: 2960 × 1668@(1–25/30 fps)
Sub stream: D1@(1–25/30 fps)
Third stream: 1080p@(1–25/30 fps)
Fourth stream: 720p@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
|
|
Stream Capability
|
4 streams
|
|
Resolution
|
5M (2960 × 1668); 5M (2880 × 1620); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
|
|
Bit Rate Control
|
CBR/VBR
|
|
Video Bit Rate
|
H.264: 32 kbps–16384 kbps; H.265: 12 kbps–11776 kbps
|
|
Day/Night
|
Auto(ICR)/Color/B/W
|
|
BLC
|
Yes
|
|
HLC
|
Yes
|
|
WDR
|
120 dB
|
|
Scene Self-adaptation (SSA)
|
Yes
|
|
White Balance
|
Auto; natural; street lamp; outdoor; manual; regional custom
|
|
Gain Control
|
Auto
|
|
Noise Reduction
|
3D NR
|
|
Motion Detection
|
OFF/ON (4 areas, rectangular)
|
|
Region of Interest (RoI)
|
Yes (4 areas)
|
|
Image Stabilization
|
Electronic Image Stabilization (EIS)
|
|
Defog
|
Yes
|
|
Image Rotation
|
0°/90°/180°/270° (Support 90°/270° with 4M (2688 ×1520) resolution and lower)
|
|
Mirror
|
Yes
|
|
Privacy Masking
|
8 areas
|
|
Audio
|
|
Built-in MIC
|
Yes
|
|
Audio Compression
|
G.711a; G.711Mu; PCM; G.726; G.723
|
|
Alarm
|
|
Alarm Event
|
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection
|
|
Network
|
|
Network Port
|
RJ-45 (10/100 Enhancement Base-T)
|
|
SDK and API
|
Yes
|
|
Network Protocol
|
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
|
|
Interoperability
|
ONVIF (Profile S/Profile G/Profile T); CGI
|
|
User/Host
|
20 (Total bandwidth: 80 M)
|
|
Storage
|
FTP; SFTP; Micro SD card (support max. 512 GB); NAS
|
|
Browser
|
IE: IE 9 and later
Chrome: Chrome 102 and later
Firefox:Firefox 88 and later
|
|
Management Software
|
KBiVMS, KBView Plus
|
|
Mobile Client
|
iOS; Android
|
|
Cyber Security
|
Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification
|
|
Port
|
|
Audio Input
|
1 channel (RCA port)
|
|
Audio Output
|
1 channel (RCA port)
|
|
Alarm Input
|
2 channels in: wet contact, 5mA 3V–5V DC
|
|
Alarm Output
|
1 channel out: wet contact, 300mA 12V DC
|
|
Power
|
|
Power Supply
|
12 VDC/24 VAC/PoE (802.3af)/ePoE
|
|
Power Consumption
|
Basic: 3.9 W (12 VDC); 4.6 W (24 VAC); 5.6 W (PoE)
Max. (H.265+ WDR+ Intelligence on+IR on): 10 W (12 VDC); 11.7 W (24 VAC); 12.1 W (PoE)
|
|
Environment
|
|
Operating Temperature
|
–30 °C to +60 °C (–22 °F to +140 °F)
|
|
Operating Humidity
|
≤95%
|
|
Storage Temperature
|
–40 °C to +60 °C (–40 °F to +140 °F)
|
|
Storage Humidity
|
10%–95% (RH), non-condensing
|
|
Protection
|
IP67; IK10
|
|
Structure
|
|
Casing Material
|
Metal
|
|
Product Dimensions
|
Φ159.1 mm × 118.1 mm (6.26″ × Φ4.65″)
|
|
Net Weight
|
0.91 kg (2.01 lb)
|
|
Gross Weight
|
1.22 kg (2.69 lb)
|

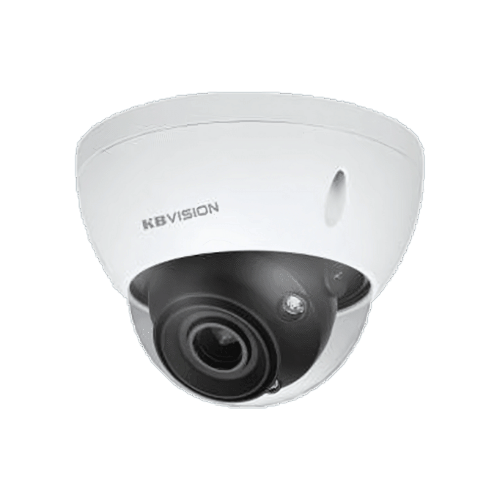

Đánh giá Camera ip 5mp kbvision KX-DAi5004MN-EAB
