| System |
| Main Processor <!–{v.name}–> | Industrial-grade processor |
| Operating System <!–{v.name}–> | Embedded Linux |
| Operating Interface <!–{v.name}–> | Web; Local GUI |
| Quick Pick |
| QuickPick 2.0 AI by Recorder (Number of Channels) <!–{v.name}–> | 2 channels |
| Perimeter Protection |
| Perimeter Performance AI by Recorder (Number of Channels) <!–{v.name}–> | Advanced Mode: 2 channels, 10 IVS rules for each channel General Mode: 4 channels, 10 IVS rules for each channel |
| Face Detection |
| Face Attributes <!–{v.name}–> | 6 attributes |
| Face Detection Performance of AI by Recorder (Number of Channels) <!–{v.name}–> | 2 channels(up to 8 face images/s each channel) |
| Privacy Protection |
| Privacy Protection Performance of AI by Recorder (Number of Channels) <!–{v.name}–> | 1 channel |
| Face Recognition |
| Face Database Capacity <!–{v.name}–> | Up to 10 face databases with 20,000 images. |
| Face Recognition Performance of AI by Recorder (Number of Channels) <!–{v.name}–> | 2 channels |
| SMD Plus |
| SMD Plus by Recorder <!–{v.name}–> | 4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD Plus by Camera <!–{v.name}–> | 8 channels |
| AI Video Quality Analytics |
| AI Video Quality Analytics by Recorder <!–{v.name}–> | 4 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white |
| Scene Changing |
| Scene Changing by Recorder <!–{v.name}–> | 1 channel |
| Irregular Black Block Masking |
| Irregular Black Block Masking by Recorder <!–{v.name}–> | 1 channel |
| EPTZ |
| EPTZ by Recorder <!–{v.name}–> | 1 channel |
| Audio and Video |
| Analog Camera Input <!–{v.name}–> | 4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect |
| Camera Input <!–{v.name}–> | 1. CVI: 4K@25/30 fps; 4K@12.5/15 fps; 6 MP@20 fps; 5 MP@25 fps; 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps. 2. TVI: 4K@15 fps; 5 MP(2560 x 1944)@20 fps; 5 MP(2960 x 1665)@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. |
| IP Camera Input <!–{v.name}–> | Up to 8 channels of IPC access 4 IP channels by default + 4 channels (analog channels are converted to IP channels) Incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps *After IP extension is enabled, EPTZ, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, SMD, Perimeter Protection, QuickPick 2.0 and Privacy Protection cannot be used. |
| Encoding Capacity <!–{v.name}–> | Encode Enhancement disabled： Main stream: the 1st channel 4K@(1 fps–10 fps), others 4K@(1 fps–7 fps); the 1st channel 5 MP@(1 fps–20 fps), others 5 MP@(1 fps–12 fps); the 1st channel 4K-N/4 MP/3 MP@(1 fps–20 fps), others 4K-N/4 MP/3 MP@(1 fps–15 fps); 4K@(1 fps–8 fps); 6 MP@(1 fps–10 fps); 5 MP@(1 fps-15 fps);4M-N/1080p/720p/960H/D1/CIF@(1 fps–25/30 fps) Sub stream: 960H@(1 fps–15 fps); D1/CIF@(1 fps–25/30 fps) Encode Enhancement enabled： Main stream: the 1st channel 4K@(1 fps–15 fps), others 4K@(1 fps–7 fps); the 1st channel 6 MP@(1 fps–20 fps), others 6 MP@(1 fps–10 fps); the 1st channel 5 MP@(1 fps–25 fps), others 5 MP@(1 fps–12 fps); the 1st channel 4K-N/4 MP/3 MP@(1 fps–25/30 fps), others 4K-N/4 MP/3 MP@(1 fps–15 fps); 4K/6 MP@(1 fps–10 fps);5 MP@(1 fps-15 fps); 4M-N/1080p/720p/960H/D1/CIF@(1 fps–25/30 fps) Sub stream: 960H@(1 fps–15 fps); D1/CIF@(1 fps–25/30 fps) *When Encode Enhancement is enabled, EPTZ, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection, QuickPick 2.0 and Privacy Protection cannot be used. |
| Dual-stream <!–{v.name}–> | Yes |
| Video Bit Rate <!–{v.name}–> | 32 kbps–6144 kbps |
| Audio Sampling <!–{v.name}–> | 8 kHz, 16 bit |
| Audio Bit Rate <!–{v.name}–> | 64 kbps |
| Video Output <!–{v.name}–> | 1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable. |
| Multi-screen Display <!–{v.name}–> | When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/8/9 |
| Third-party Camera Access <!–{v.name}–> | Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF |
| Compression Standard |
| Video Compression <!–{v.name}–> | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
| Audio Compression <!–{v.name}–> | G.711a; G.711u; PCM |
| Network |
| Network Protocol <!–{v.name}–> | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
| Mobile Phone Access <!–{v.name}–> | iOS; Android |
| Interoperability <!–{v.name}–> | ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK |
| Browser <!–{v.name}–> | Chrome; IE; Safari; Edge; Firefox |
| Recording Playback |
| Record Mode <!–{v.name}–> | General; alarm; motion detection; intelligent; POS |
| Recording Playback <!–{v.name}–> | 1/4 |
| Backup Method <!–{v.name}–> | USB device and network |
| Playback Mode <!–{v.name}–> | Instant playback; general playback; event playback; tag playback; smart playback |
| Alarm |
| General Alarm <!–{v.name}–> | Motion detection; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm |
| Anomaly Alarm <!–{v.name}–> | Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline |
| Intelligent Alarm <!–{v.name}–> | Face detection; face recognition; perimeter protection; SMD Plus |
| Alarm Linkage <!–{v.name}–> | Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email |
| Ports |
| Audio Input <!–{v.name}–> | 1-channel RCA 4-channel BNC (Coaxial Audio) |
| Audio Output <!–{v.name}–> | 1-channel RCA |
| Two-way Talk <!–{v.name}–> | Yes (share the same audio input with the first channel) |
| Disk Interface <!–{v.name}–> | 1 SATA port. up to 16 TB. This limit varies depending on the environment temperature. |
| RS-485 <!–{v.name}–> | 1 |
| USB <!–{v.name}–> | 2 (1 front USB 2.0 port, 1 rear USB 2.0 port) |
| HDMI <!–{v.name}–> | 1 |
| VGA <!–{v.name}–> | 1 |
| Network Port <!–{v.name}–> | 1 (10/100 Mbps Ethernet port, RJ-45) |
| General |
| Power Supply <!–{v.name}–> | 12 VDC, 2 A |
| Power Consumption <!–{v.name}–> | <7 W (without HDD) |
| Net Weight <!–{v.name}–> | 1.16 kg (2.56 lb) |
| Gross Weight <!–{v.name}–> | 1.75 kg (3.86 lb) |
| Product Dimensions <!–{v.name}–> | 325.0 mm × 257.1 mm × 55.0 mm (12.80″ × 10.12″ × 2.17″) (W × D × H) |
| Packaging Dimensions <!–{v.name}–> | 372.0 mm × 117.0 mm × 308.0 mm (14.65″ × 4.61″ × 12.13″) (W × D × H) |
| Operating Temperature <!–{v.name}–> | <!– 对有n 的进行换行 fuzucong 加
|

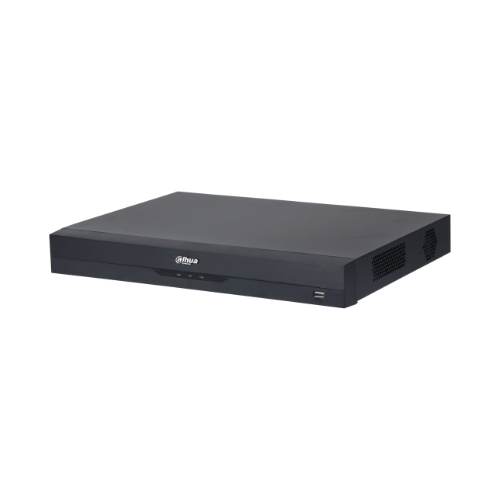

Đánh giá Đầu ghi cvi 4 kênh dahua DH-XVR5104H-4KL-I3
