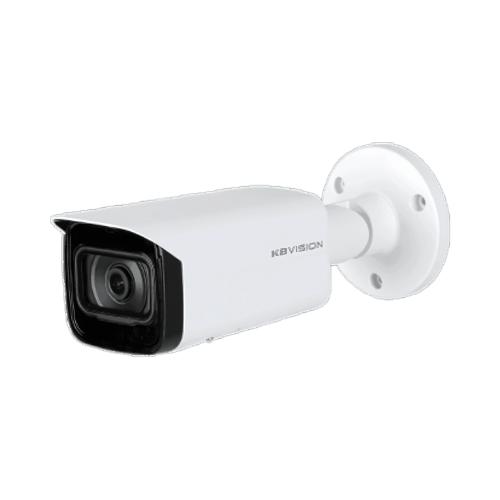

Camera Ip 2.0 Mp Kbvision KX-DAi2203N-EAB

Camera

Image Sensor

1/2.8″ CMOS

Max. Resolution

1920 (H) × 1080 (V)

ROM

4 GB

RAM

1 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.0007 lux@F1.6 (Color, 30 IRE)
0.0004 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

80 m (262.47 ft) (IR)

Illuminator On/Off Control

Auto; Manual

Illuminator Number

4 (IR LED)

Angle Adjustment

Pan: 0°–360°; Tilt: 0°–90°; Rotation:0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm; 6 mm; 8 mm

Max. Aperture

F1.6

Field of View

2.8 mm: H: 106°; V: 56°; D: 127°
3.6 mm: H: 88°; V: 44°; D: 105°
6 mm: H: 54°; V: 29°; D: 63°
8 mm: H: 42°; V: 23°; D: 47°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.7 m (2.30 ft)
3.6 mm: 1.3 m (4.27 ft)
6 mm: 2.6 m (8.53 ft)
8 mm: 3.8 m (12.47 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

43.9 m (144.03 ft)

17.5 m

(57.41 ft)

8.8 m

(28.87 ft)

4.4 m

(14.44 ft)

3.6 mm

58.9 m (193.24 ft)

23.6 m

(77.43 ft)

11.8 m

(38.71 ft)

5.9 m

(19.36 ft)

6 mm

85.5 m (280.51 ft)

34.2 m (112.20 ft)

17.1 m

(56.10 ft)

8.6 m

(28.22 ft)

8 mm

103.7 m (340.22 ft)

41.5 m (136.15 ft)

20.7 m

(67.91 ft)

10.4 m

(34.12 ft)

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection

Smart Object Detection

Smart abandoned object; smart missing object

SMD 3.0

Less false alarm, longer detection distance

AI SSA

Yes

Face Detection

Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting

People Counting

Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management, generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.

Heat Map

Yes

Video Metadata

Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload.
Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling.
Non-motor vehicle attributes: type, color, number of people, top type and color, hat.
Human body attributes: gender, top/bottom type and color, bag, hat and umbrella.
Face attributes: gender, age, expressions, glasses, face mask and beard.

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Smart Sound Detection

Yes

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

AI Coding

AI H.265; AI H.264

Video Frame Rate

Main stream: 1080p@1–25/30 fps)
Sub stream: D1@(1–25/30 fps)
Third stream: 1080p@(1–25/30 fps)
Fourth stream: 720p@(1–25/30 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

4 streams

Resolution

1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–12032 kbps
H.265: 12 kbps–7424 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)

Mirror

Yes

Privacy Masking

8 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; PCM; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception

Network

Network Port

RJ-45 (10/100 Enhancement Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI;

User/Host

20 (Total bandwidth: 80 M)

Storage

FTP; SFTP; Micro SD card (support max. 512 GB); NAS

Browser

IE: IE 9 and later
Chrome: Chrome 102 and later
Firefox: Firefox 88 and later

Management Software

KBView Plus, KBiVMS

Mobile Client

iOS; Android

Cyber Security

Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: wet contact, 5 mA 3V–5 VDC

Alarm Output

1 channel out: wet contact, 300mA 12V DC

Power

Power Supply

12 VDC/PoE (802.3af)/ePoE

Power Consumption

Basic: 4.1 W (12 VDC); 5.2 W (PoE)
Max. (H.265+ WDR+ Intelligence on+IR on): 8.3 W (12 VDC); 9.8 W (PoE)

Environment

Operating Temperature

–40°C to +60°C (–40 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–40°C to +60°C (–40 °F to +140 °F)

Storage Humidity

10%–95% (RH), non-condensing

Protection

IP67; IK10

Structure

Casing Material

Metal

Product Dimensions

244.1 mm × 79.0 mm × 75.9 mm (9.61″ × 3.11″ × 2.99″) (L × W × H)

Net Weight

0.82 kg (1.81 lb)

Gross Weight

1.08 kg (2.38 lb)
