Thông tin sản phẩm

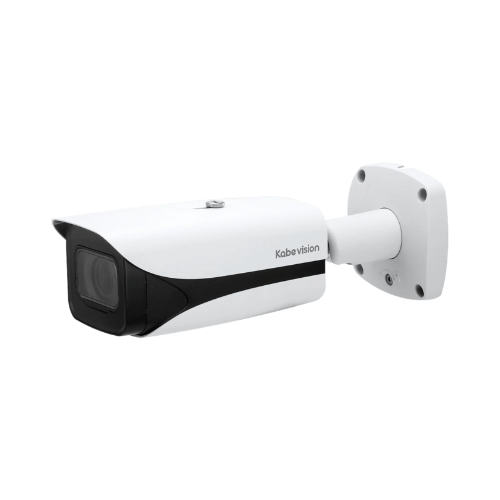

Camera IP KabeVision KX-D2005MN-EAB 2MP An Ninh Ngoài Trời Với Starlight
Bạn muốn camera IP ngoài trời với ống kính đa tiêu cự và khả năng giám sát thông minh? Camera IP KabeVision KX-D2005MN-EAB 2MP với cảm biến Sony Starvis 1/2.8 và công nghệ Starlight mang đến giải pháp an ninh tối ưu. Tích hợp hồng ngoại 60m, nhận diện khuôn mặt, đếm người và thiết kế IP67, IK10, camera này đảm bảo bảo vệ liên tục cho tài sản của bạn.
Hình Ảnh 2MP Siêu Nét Quan Sát Sắc Nét
Độ phân giải 2MP (25/30fps@1080P, 1920×1080) và công nghệ AI-Powered Image mang đến hình ảnh sắc nét. Công nghệ WDR (120dB), 3D-DNR, Starlight và AI SSA đảm bảo hình ảnh sắc nét trong điều kiện ánh sáng yếu hoặc ngược sáng.
Ống Kính Đa Tiêu Cự Góc Nhìn Linh Hoạt
Ống kính motorized 2.7mm13.5mm với góc nhìn từ 109° đến 30° cho phép tùy chỉnh linh hoạt, phù hợp cho sân vườn, bãi đỗ xe hoặc nhà xưởng. Công nghệ AI SSA đảm bảo hình ảnh rõ ràng, không bị méo.
AI Thông Minh Bảo Vệ Hiệu Quả
Tính năng AI như nhận diện khuôn mặt (phân tích tuổi, giới tính, biểu cảm, kính, khẩu trang, râu), bảo vệ chu vi (hàng rào ảo, khu vực cấm), SMD 3.0 (phân biệt người/xe), đếm người, phát hiện vật thể bị bỏ rơi/lấy mất, phát hiện âm thanh bất thường, Heat Map, Video Metadata và Quick Pick đảm bảo nhận diện chính xác, giảm báo động giả.
Âm Thanh và Báo Động Tăng Cường An Ninh
Tích hợp mic và cổng audio 1in/1out, alarm 2in/1out hỗ trợ ghi âm và báo động thông minh. Tính năng phát hiện âm thanh bất thường giúp phát hiện sự cố kịp thời, tăng cường khả năng bảo vệ.
Starlight và Hồng Ngoại 60m An Ninh 24/7
Công nghệ Starlight kết hợp hồng ngoại 60m mang lại hình ảnh rõ nét trong bóng tối. Chế độ ngày đêm (ICR), AWB, AGC và BLC đảm bảo quan sát chi tiết mọi lúc.
Lưu Trữ và Quản Lý Tiện Lợi
Hỗ trợ thẻ nhớ MicroSD 512GB và P2P cho lưu trữ video an toàn. Phần mềm KBVIEW Plus, KBiVMS, KBVMS Lite cùng ONVIF, tên miền miễn phí KabeVision.TV và AutoRegister 1.0 giúp quản lý dễ dàng.
Thiết Kế Bền Bỉ Hoạt Động Mọi Thời Tiết
Chuẩn IP67, IK10, camera chịu được va đập và hoạt động ổn định trong -40°C ~ +60°C. Nguồn 12VDC, PoE hoặc ePoE đảm bảo kết nối ổn định trong mọi điều kiện.
Vì Sao Chọn KabeVision KX-D2005MN-EAB?
- Hình ảnh 2MP sắc nét: Chi tiết rõ ràng với công nghệ AI.
- Ống kính đa tiêu cự: Linh hoạt điều chỉnh góc nhìn 109°30°.
- AI thông minh: Nhận diện khuôn mặt, bảo vệ chu vi, đếm người.
- Hồng ngoại 60m: Quan sát hiệu quả trong bóng tối.
- Chống nước IP67, IK10: Bền bỉ trong mọi điều kiện.
Nâng cấp an ninh với Camera IP KabeVision KX-D2005MN-EAB 2MP! Đặt hàng ngay để sở hữu công nghệ giám sát tiên tiến.
Thông số kỹ thuật
| Camera | |
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 1920 (H) x 1080 (V) |
| ROM | 4 GB |
| RAM | 1 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.0007 lux@F1.5 (Color, 30 IRE) 0.0004 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | 60 m (196.85 ft) (IR) |
| Illuminator On/Off Control | Auto; Zoom-prio; Manual |
| Illuminator Number | 4 (IR LED) |
| Angle Adjustment | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Motorized vari-focal |
| Lens Mount | φ14 |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.5 |
| Field of View | H: 109°–30°; V: 56°–17°; D: 131°–35° |
| Iris Control | Auto |
| Close Focus Distance | 0.8 m (2.62 ft) |
| DORI Distance | |
| Lens | Wide |
| Detect | 44.1 m (144.69 ft) |
| Observe | 17.7 m (58.07 ft) |
| Recognize | 8.8 m (28.87 ft) |
| Identify | 4.4 m (14.44 ft) |
| Lens | Tele |
| Detect | 144.8 m (475.07 ft) |
| Observe | 57.9 m (189.96 ft) |
| Recognize | 29.0 m (95.14 ft) |
| Identify | 14.5 m (47.57 ft) |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection |
| Smart Object Detection | Smart abandoned object; smart missing object |
| SMD 3.0 | Less false alarm, longer detection distance |
| AI SSA | Yes |
| Face Detection | Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. |
| People Counting | Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management; generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management. |
| Heat Map | Yes |
| Video Metadata | Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload. |
| Video Metadata Attributes | Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling. Non-motor vehicle attributes: type, color, number of people, top type and color, hat. Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard. |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Smart Sound Detection | Yes |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265; AI H.264 |
| Video Frame Rate | Main stream: 1080p@(1–25/30 fps) Sub stream: D1@(1–25/30 fps) Third stream: 1080p@(1–25/30 fps) Fourth stream: 720p@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 4 streams |
| Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 kbps–12032 kbps; H.265: 12 kbps–7424 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 8 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection |
| Network | |
| Network Port | RJ-45 (10/100 Enhancement Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI |
| User/Host | 20 (Total bandwidth: 80 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 512 GB); NAS |
| Browser | IE: IE 9 and later Chrome: Chrome 102 and later Firefox: Firefox 88 and later |
| Management Software | KBVMS, KBView Plus |
| Mobile Client | iOS; Android |
| Cyber Security | Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 2 channels in: wet contact, 5mA 3V–5V DC |
| Alarm Output | 1 channel out: wet contact, 300mA 12V DC |
| Power | |
| Power Supply | 12 VDC/PoE (802.3af)/ePoE |
| Power Consumption | Basic: 3.4 W (12 VDC); 4.5 W (PoE) Max. (H.265+ WDR+ Intelligence on+IR on): 9.3 W (12 VDC); 11.6 W (PoE) |
| Environment | |
| Operating Temperature | –30 °C to +60 °C (−22 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +60 °C (−40 °F to +140 °F) |
| Storage Humidity | 10%–95% (RH), non-condensing |
| Protection | IP67; IK10 |
| Structure | |
| Casing Material | Metal |
| Product Dimensions | 273.2 mm × 95.0 mm × 95.0 mm (10.76″ × 3.74″ × 3.74″) (L × W × H) |
| Net Weight | 1.12 kg (2.47 lb) |
| Gross Weight | 1.66 kg (3.66 lb) |
