Thông tin sản phẩm

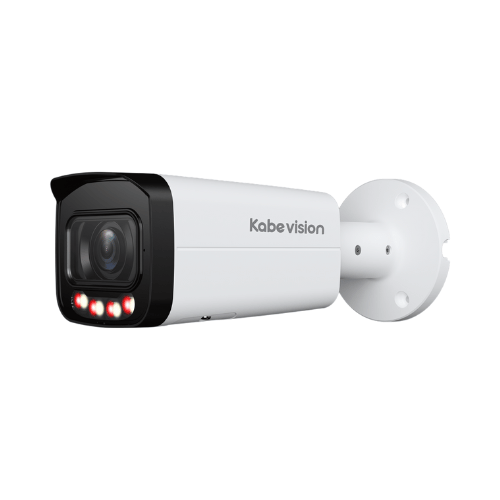

Camera IP Thân Full Color Ánh Sáng Kép 4MP Kabevision KX-CD4005MN-AB Giải Pháp An Ninh Ngoài Trời Thông Minh
Khám phá Camera IP Thân Full Color Ánh Sáng Kép Thông Minh 4MP Kabevision KX-CD4005MN-AB giải pháp giám sát ngoài trời hoàn hảo với hình ảnh 4MP màu sắc 24/7, công nghệ AI tiên tiến và độ bền vượt trội. Phù hợp cho sân vườn, bãi đỗ xe hay khu vực doanh nghiệp, camera này đảm bảo an ninh hiệu quả với chi phí tối ưu. Đặt hàng ngay để nâng tầm bảo vệ!
Hình Ảnh 4MP Màu Sắc Sống Động
Cảm biến CMOS 1/2.9 4MP mang đến độ phân giải 2688×1520 ở tốc độ 1-25/30fps. Công nghệ Starlight với độ nhạy sáng 0.005Lux@F1.5 và AI SSA tự động điều chỉnh, đảm bảo hình ảnh màu sắc rõ nét ngay cả trong bóng tối, mang lại trải nghiệm giám sát sống động như ban ngày.
AI Thông Minh Tăng Cường Hiệu Quả
Tích hợp AI với Hàng rào ảo, Xâm nhập (phân biệt người/xe), SMD 4.0 và AcuPick, camera mang lại khả năng phát hiện chính xác. Tính năng Quick Pick giúp tìm kiếm nhanh video theo đối tượng, tối ưu hóa quy trình quản lý an ninh, tiết kiệm thời gian và công sức.
Ống Kính Motorized Đa Góc Nhìn
Ống kính motorized 2.7-13.5mm với góc nhìn từ 104° đến 29°, cho phép điều chỉnh từ xa, phù hợp cho mọi không gian ngoài trời từ lối đi hẹp đến bãi đỗ xe rộng lớn, đảm bảo giám sát toàn diện.
Chiếu Sáng Kép & Chống Ngược Sáng WDR
Công nghệ chiếu sáng kép với hồng ngoại 60m và LED ánh sáng ấm 60m mang lại hình ảnh màu sắc sống động trong đêm. WDR 120dB chống ngược sáng, kết hợp ICR, AWB, AGC, BLC, 3D-DNR, AFSA, đảm bảo hình ảnh sắc nét, cân bằng trong mọi điều kiện ánh sáng.
Thiết Kế Bền Bỉ, Tích Hợp Tiện Ích
Chuẩn IP67 chống nước, vỏ kim loại, hoạt động từ -40°C đến +60°C. Hỗ trợ thẻ nhớ 256GB, cổng Alarm 1in/1out, Audio 1in/1out, chuẩn ONVIF, P2P, và phần mềm KBiVMS, KBVMS Lite, KBView Plus, mang lại trải nghiệm quản lý an ninh dễ dàng.
Lý Do Nên Đầu Tư Ngay
Với chuẩn nén H.265+ tiết kiệm lưu trữ, nguồn PoE dễ lắp đặt, và công nghệ Full Color ánh sáng kép, camera này mang lại giải pháp giám sát ngoài trời hiện đại, hiệu quả. Đặt hàng ngay để bảo vệ không gian của bạn với hình ảnh màu sắc chân thực!
Thông số kỹ thuật
| Camera | |
| Image Sensor | 1/2.9″ CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| ROM | 256 MB |
| RAM | 1 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s~1/100,000 s |
| Min. Illumination | 0.005 lux@F1.4 (Color, 30 IRE) 0.0005 lux@F1.4 (B/W,30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | Up to 60 m (196.85 ft) (IR) Up to 60 m (196.85 ft) (Warm light) |
| Illuminator On/Off Control | Auto; Manual |
| Illuminator Number | 4 (Multi-core (IR + warm) light) |
| Angle Adjustment | Pan: 0″–360″; Tilt: 0″–90″; Rotation: 0″–360″ |
| Lens | |
| Lens Type | Motorized vari-focal |
| Lens Mount | φ14 |
| Focal Length | 2.7 mm-13.5 mm |
| Max. Aperture | F1.4 |
| Field of View | H: 104″–29″; V: 54″–16″; D: 125″–34″ |
| Iris Control | Fixed |
| Close Focus Distance | 0.1 m (0.33 ft) |
| DORI Distance | |
| Lens | W |
| Detect | 64.0 m (209.97 ft) |
| Observe | 25.6 m (83.99 ft) |
| Recognize | 12.8 m (41.99 ft) |
| Identify | 6.4 m (21.00 ft) |
| Lens | T |
| Detect | 210.0 m (688.98 ft) |
| Observe | 84.0 m (275.59 ft) |
| Recognize | 42.0 m (137.80 ft) |
| Identify | 21.0 m (68.90 ft) |
| Intelligence | |
| IVS (Perimeter Protection) | Tripwire, intrusion (support the classification and accurate detection of vehicle and human) |
| SMD | SMD 4.0 |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| ALSSA | Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265; AI H.264 |
| Video Frame Rate | Main stream: 2688 × 1520@[1 fps–25/30 fps] Sub stream: 1920 × 1080@[1 fps–25/30 fps] Third stream: 1920 × 1080@[1 fps–25/30 fps] The values above are the max frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 3 streams |
| Resolution | 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (532 × 288/352 × 240) |
| Bit Rate Control | VBR; CBR; ABR |
| Video Bit Rate | H.264: 3 kbps–16384 kbps H.265: 3 kbps–16384 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Image Stabilization | Electronic Image Stabilization (IES) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Smart Dual Light | Yes |
| Defog | Yes |
| AESA | Yes |
| Image Rotation | 0°/90°/180°/270° (support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 8 areas |
| Audio | |
| Built-in Mic | Yes, built-in Mic |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; defocus detection; external alarm; SMD; safety exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
| Interoperability | ONVIF (Profile S & Profile G & Profile T & Profile M); CGI |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 512 G); NAS |
| Browser | IE: IE11 Chrome Firefox |
| Mobile Client | iOS; Android |
| Cyber Security | Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Port | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: wet contact, 5 mA 3 V–5 VDC |
| Alarm Output | 1 channel out: wet contact, 300 mA 12 VDC |
| Power | |
| Power Supply | 12 VDC/PoE (802.3af) |
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| Power Consumption | Basic: 3.2 W (12 VDC); 4.8 W (PoE) Max. -9.3 W (12 VDC); 11.9 W (PoE) [H.265 + WDR + warm light + intelligence on] |
| Environment | |
| Operating Temperature | -30 ℃ to +60 ℃ (-22 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Storage Temperature | -40 ℃ to +60 ℃ (-40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67 |
| Structure | |
| Casing | Metal |
| Product Dimensions | 238.5 mm × 90.7 mm × 90.7 mm (9.39″ × 3.57″ × 3.57″) (1 × W × H) |
| Net Weight | 835 g (1.84 lb) |
| Gross Weight | 1090 g (2.40 lb) |
